Current:Home > Products - Fisheye Lenses - SFY1928CIR-12M ( 1.9mm ) 1/1.6"

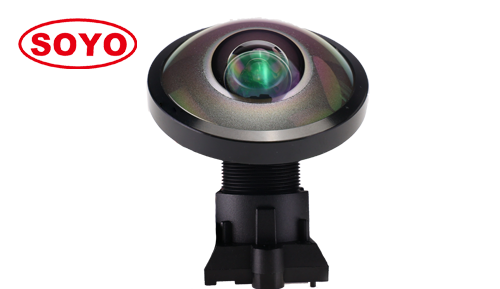

Product name:SFY1928CIR-12M ( 1.9mm ) 1/1.6"
Product description:


1.9mm 1/1.6" 12.0 Megapixel Fisheye Lenses F-theta <1% IR Crossing Security Surveillance LPR 360 Panoramic CCTV Camera Optical Lens M12 S-mount China Lentz 大靶面1/1.6英寸360度鱼眼镜头

  • High resolution:       12 megapixel covering 4K,1080P
  • Focal length:           1.9mm support wide FOV.
  • Large format:          1/1.6" can cover 1/1.8“
  • Wide FOV :             200 degree surveillance for D.V.H.
  • Application:           Observatory, LPR ( Liscence plate recognization) street, office


Model 型号

SFY1928CIR-12M

Resolution 像素

12 Megapixel

IR Corrected 日夜

IR

Format 靶面

1/1.6" (Φ6.4mm)

Focal Length 焦距

1.9mm

Aperture 光圈

F2.8 Fixed Iris

Angle of View (°) 视场角

1/1.6"

200*200*200 ( IMX676 )

C.R.A 夹角

Illumination 照度

80%

Size 尺寸

Φ31.8*26.4

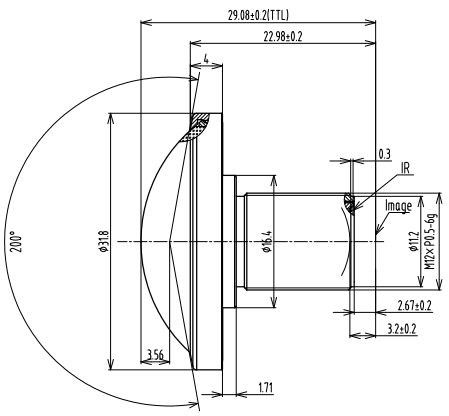

T.T.L 光学总长

29.08mm

F-Theta 畸变

<1%

Mount 接口

M12

Weight 重量

31g

Marks 备注

Center 250,edge 200
