CURRENT:HOME > PRODUCTS - 3.0 Megapixel Lenses - SMZ10380PIR-3M (10-380mm) 1/1.8"

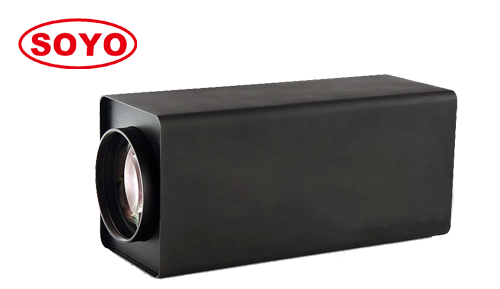

Product name:SMZ10380PIR-3M (10-380mm) 1/1.8"
Product description:

CCTV Lens Features:

  • High resolution:      3.0 megapixel can cover 3MP,1080P
  • Wide focal length:  10-380mm can satisfy most area.
  • Big aperture:           F1.5 suitable for dark vision
  • Large format:          1/1.8" can cover all 1/1.8",1/2",1/2.5"
  • IR correction :         24h day & night vision
  • Preset function:       Preset function makes auto-run.
  • Anti-foggy :              Anti-foggy makes 24h vision better.
  • Application:           Highway,train, power station, forest, city surveillance, border.




Model

SMZ10380PIR-3M

Resolution

3.0 Megapixel

Format  (inch)

1/1.8"

Focal length  (mm)

10380mm

Aperture

F1.5-3.6

Day/night

IR

Operation

Iris

DC

Focus

Motorized

Zoom

Motorized

Field of view (DXHXV)

1/1.8"

Wide

39°×31.2°×23.4°

Tele

6°×1.28°×0.96°

M.0.D (m)

2.8m

O.D

Front



Rear



Dimension

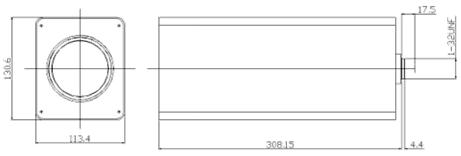

Φ113.4mm×130.6mm×308.1mm

Weight (g)

3400

Mount

C
