Current:Home > Products - 1" 5.0 Megapixel Lenses - S1MV1214-5M ( 12mm ) 1"

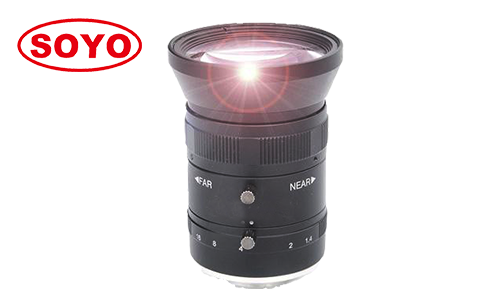

Product name:S1MV1214-5M ( 12mm ) 1"
Product description:


12mm 1" 5MP Megapixel Lenses Machine Vision FA <1.5% Low Distortion F1.4 Industrial Recognition Positioning Measurement Automation 4K 3D AI Sort Camera China CCTV Lens

  • High resolution :      5.0 megapixel cover all 4K & 1080P
  • Large format:          1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Big aperture :          F1.4 big aperture makes imaging far better
  • Low distortion :        <1.5% low distortion use machine vision ITS
  • Application :            Automation, machine vision, medical, life science, ITS, SMT, AOI.



Model 型号

S1MV1214-5M

Resolution 像素

5.0 Megapixel

B.F.L 光学后焦

/

Format 靶面

1"

Focal Length 焦距

12mm

Aperture (Close) 光圈

F1.4 Manual Iris

Angle of View (°)

视场角 D*H*V

1"

66*53*40

2/3"

/

1/3"

/

M.O.D (m) 最近物距

0.3m

Size 尺寸

Φ50*64.9mm

Distortion 畸变

<1.5%

Mount 接口

C

Weight 重量

246g
