Current:Home > Products - 1" 5.0 Megapixel Lenses - S1MV3520-5M ( 35mm ) 1"

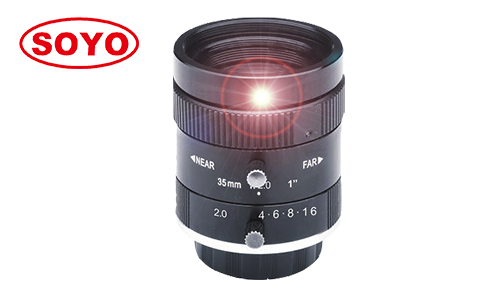

Product name:S1MV3520-5M ( 35mm ) 1"
Product description:


35mm 1" 5MP Megapixel Lenses Machine Vision FA <1% Low Distortion F1.4 Industrial Automation Computer Vision Recognition Area Scan 3D AI Sort Camera Optics China Robotic Lens Lentz

  • High resolution :      5.0 megapixel cover all 4K & 1080P
  • Large format:          1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion :        <1% low distortion use machine vision ITS
  • Application :            Automation, machine vision, medical, life science, ITS, SMT, AOI.



Model 型号

S1MV3520-5M

Resolution 像素

5.0 Megapixel

B.F.L 光学后焦

/

Format 靶面

1"

Focal Length 焦距

35mm

Aperture (Close) 光圈

F2.0 Manual Iris

Angle of View (°)

视场角 D*H*V

1"

26*21*15.5

2/3"

/

1/3"

/

M.O.D 最近物距

0.5m

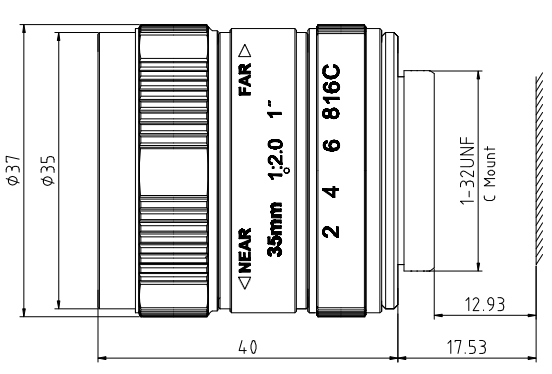

Size 尺寸

Φ37*41mm

Distortion 畸变

<1.0%

Mount 接口

C

Weight  重量

100g
