Product name:Intercom Lenses 1/2.7" 2MP
Product description:

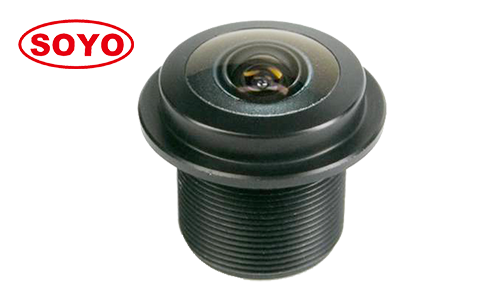

1.78mm 1/2.7" 2MP 1080P Megapixel CCTV Lens Intercom Optical Lenses @ Doorphone Access Control S Mount M12


1. SDL1720IR-2M-17  ( Step 1.7mm height, No IR Cut )


2. SDL1720IR-2M-12  ( Step 1.2mm height, IR Cut optional )

3. SDL1720IR-2M  ( No Step, IR Cut optional )

Model 型号

SDL1720IR-2M

Resolution 像素

2.0 Megapixel

Format (inch) 靶面

1/2.7"

Focal Length 焦距

1.78mm

IR day & night 紅外

IR

Aperture (close) 光圈

F2.0  Fixed iris

Angle of View (°) 视场角

1/2.7"

200*190*145

Angle of view 1/3"

200*165*125

M.O.D 最近物距

0.1m

Distortion 畸变

<9.2%

CRA 主光线夹角

/

B.F.L 光学后焦

3.49mm ( in air)

M.F.L 机械后焦

/

Filter size 滤镜尺寸

/

T.T.L 光学总长

14.52mm

Dimension 尺寸

Φ16*11.1mm ( No IR Cut ) / Φ14*11.8mm ( IR Cut )

Mount 接口

M12

Weight 重量

5g

Structure 结构

6G / 6G+1IR

Marks 备注

-20°~ +8
