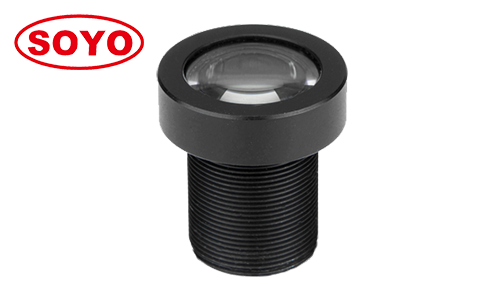

Product name:SND0628-5M ( 6mm ) 1/1.8"
Product description:


6mm 1/1.8" 5.0 Megapixel Lenses M12 S-mount Machine Vision FA <0.5% Low Distortion Industrial Face Recognition Scan Video Camera CCTV Lens

  • High resolution :      5 megapixel covering all 5MP & 1080P
  • Large format:           1/1.8" size covering 1/1.8", 1/2", 1/2.5" camera
  • Low distortion :        <0.5% super low distortion
  • Small size:               Small size disign makes it various application
  • Application :             Video converference, UAV, scanner, sports DV, machine vision etc.



    Model 型号

    SND0628-5M

    Resolution 解像力

    5.0 Megapixel

    Max Image 像高

    /

    Format 靶面

    1/1.8"

    Focal Length 焦距

    6.0mm

    Aperture (Close)光圈

    F2.8 Fixed Iris

    Angle of View (°)

    DxHxV

    1/1.8"

    72*60.6*46.6

    1/2"

    /

    1/2.5"

    /

    M.O.D 最近物距

    0.1m

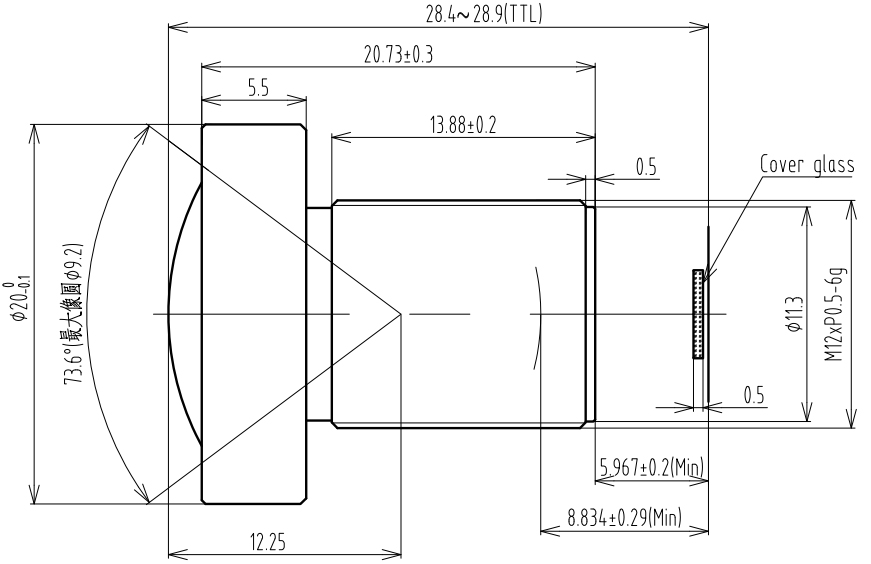

    Dimension 尺寸

    Φ20*22.04mm

    TTL 光学总长

    28.4mm

    Distortion 畸变

    <0.5%

    Mount 接口

    M12

    Weight 重量

    8g
