CURRENT:HOME > PRODUCTS - 2/3" 5.0 Megapixel Lenses - SMV3514-5MC ( 35mm ) 2/3" B

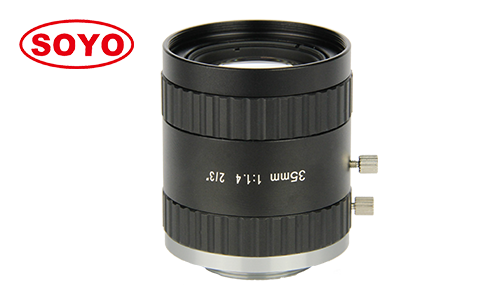

Product name:SMV3514-5MC ( 35mm ) 2/3" B
Product description:


35mm 2/3" 5MP Machine Vision FA <-0.8% Low Distortion F1.4 Industrial Recognition 4K ITS AI Sort Camera C Megapixel Lenses

  • High resolution :       5.0 megapixel cover all 4K & 1080P
  • Large format:           2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Big aperture :           F1.4 big aperture makes imaging far better
  • Low distortion :        -0.8% low distortion use machine vision ITS
  • Application :             Automation, machine vision, medical, life science, ITS, SMT, AOI.


    Model

    SMV3514-5MC

    Resolution

    5.0 Megapixel

    Format  (inch)

    2/3"

    Focal Length  (mm)

    35mm

    Aperture  (Close)

    F1.4 Manual Iris

    Angle of View (°)

    1"

    2/3"

    17.3*13.9*10.4

    1/2"

    M.O.D  (m)

    0.2

    Size

    Φ39.8*43.7

    Screw filter (mm)

    M30.5*P0.5

    Distortion

    -0.8%

    Mount

    C

    Weight  (g)

    150
