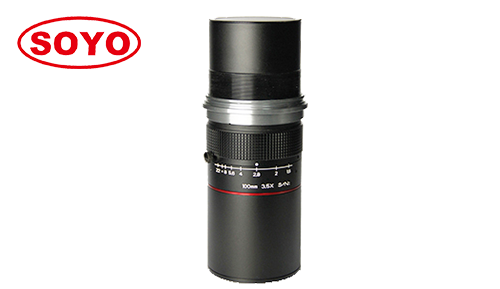

Product name:16K OLED SLS1635-16K ( 1μm 16K )
Product description:

φ82 100mm 16K Resolution 1μm OLED Inspection Machine Vision FA Lenses Line Scan Distortion <0.001% Telecentric 3° M59 Mount 超高像素线扫镜头OLED屏幕瑕疵检测

Download PDF : SLS1635-16K

* Sensor size φ82

* Resolution 16K, 1μm, match 3.5μm/5μm camera 匹配3.5μ/5μ相机

* Non-distortion <0.001%

* Telecentric




Model 型号

SLS1635-16K

Resolution 像素

16K

Focal Length 焦距

100mm

Max image circle 最大像高

φ82

Aperture 光圈

F1.6 Manual Iris

Angle of View 视场角D

26.6

Magnification 倍率

3.35×

3.5×

3.65×

Working DistanceA+B

49.7±5

48.4±5

47.3±5

Conjugate Distance

537.99±9

551.79±9

409.9±0.5

Flange Focal Distance

379.7±0.5

394.8±0.5

409.9±0.5

ENP Diameter

62.2

Distortion 畸变

0.01%

Telecentric 远心

3°

Marks 备注精度

clearance

Application 应用

OLED Inspection
