Current:Home > Products - 4K M12 Lenses - SBF0520IR-12M ( 5mm ) 1/1.7"
Product name:
Product description:

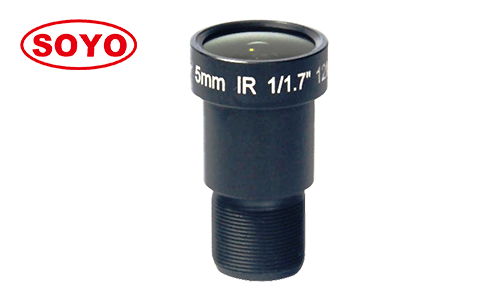

1/1.7" 5.0mm 12 Megapixel Lenses CCTV
SecuritySurveillance  S mount M12 IR Day Night dome bullet camera lens

  • High resolution:      12 megapixel can cover 8MP,5MP.
  • Big aperture:           F2.0 big aperture support evening dark vision
  • Large format:          1/1.7" large format covering 1/1.8", 1/2"
  • IR correction :         24h day & night vision
  • Application:           Smart home, security surveilance, office, room, bank etc.



    Model 型号

    SBF0520IR-12M

    Resolution 像素

    12 Megapixel

    IR Correction 红外

    IR

    Format (inch) 靶面

    1/1.7"

    Focal Length (mm) 焦距

    5.0mm

    B.F.L (mm) 光学后焦

    6.39mm

    Aperture (Close) 光圈

    F2.0 Fixed iris

    Angle of View (°)

    视场角 D*H*V

    1/1.7"

    121*90*65

    1/2.5"

    87*69*50

    1/3"

    71*56*42

    M.O.D (m) 最近物距

    0.3m

    Size 尺寸

    Φ17*29.4

    Distortion 畸变

    <-43.7%

    Mount 接口

    M12

    Weight (g) 重量

    12g
