Current:Home > Products - Fisheye Lenses - SFY2024IR-12M ( 2.0mm ) 1/1.7"

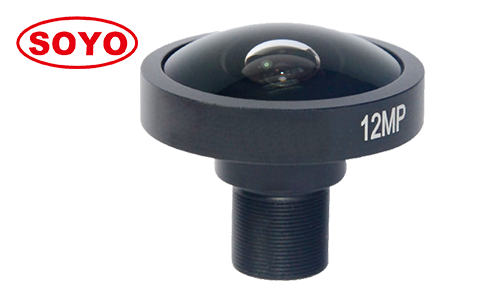

Product name:SFY2024IR-12M ( 2.0mm ) 1/1.7"
Product description:


2.0 mm 1/1.7" 12.0 Megapixel Fisheye Lenses CCTV Lens Security Surveillance Camera Optics ITS Crossing Parking LPR Liscense Plate Recognition 360 Panoramic Intercom View China S-Mount

  • High resolution:      12 megapixel covering 4K,1080P
  • Focal length:           2.0mm support wide FOV.
  • Large format:          1/1.7" can cover 1/1.8", 1/2", 1/2.5" camera.
  • Big aperture :          F2.4 support vast occassions.
  • Illumination :           >93.87% relative illumination
  • Application:           Observatory, street, office etc .



    Model 型号

    SFY2024IR-12M

    Resolution 像素

    12 Megapixel

    IR Corrected 日夜

    IR

    Format 靶面

    1/1.7"

    Image circle 像高

    Φ5.6mm

    Focal Length 焦距

    2.0mm

    Aperture 光圈

    F2.4   Fixed Iris

    Angle of View (°) 视场角

    1/1.7"

    185*185*185

    M.O.D 最近物距

    0.1m

    Relative illumination 相对照度

    >93.87%

    Size 尺寸

    Φ26.5*30.47mm

    T.T.L 光学总长

    30.03mm

    Distortion 畸变

    -10.6 %

    Mount 接口

    M12

    Weight 重量

    35g


SFY2024-12M ( 2.0mm 1/1.7" 12Megapixel Fisheye Lenses Real Capture )
