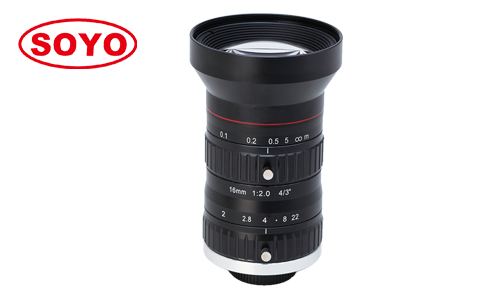

Product name：S43MV1620-10M ( 16mm ) 4/3"

Product description：

16mm 4/3" 10MP Megapixel Lenses Machine Vision FA <-2.8% Low Distortion Industrial Automation SMT AOI Semiconductor Color Sort Recognition Positioning Measurement Camera CCTV Lens China Optics Asseccory

High resolution : 10 megapixel covering all 4K & 1080P
Large format: 4/3" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
Low distortion : -2.8% low distortion
Small size: Small size disign makes it various application
Application : Automation, machine vision, medical, life science, SMT, AOI.

Model 型号		S43MV1620-10M
Resolution 像素		10 Megapixel
Format 靶面		4/3"
Focal Length 焦距		16mm
B.F.L 光学后焦		21mm
Aperture (Close) 光圈		F2.0 Manual iris
Angle of View (°) *视场角 DHV*	4/3"	*736147*
	1"	*544434*
	2/3"	/
M.O.D 最近物距		0.1m

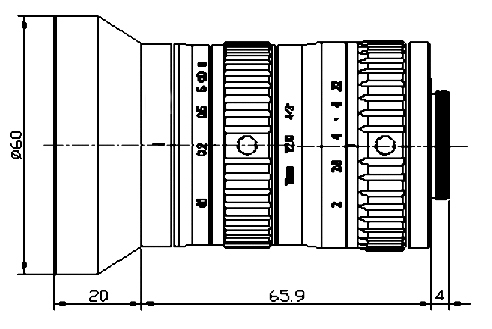

Size 尺寸		Φ*60.289.9mm**
Distortion 畸变		-2.8%
Filter Size 滤镜螺纹		*M580.75**
Mount 接口		C
Weight 重量		339g

(cctv lenses, megapixel lenses, varifocal lenses,camera lenses,machine vision lenses, motorized zoom lenses, fisheye lenses, FA lenses, industrial lenses, M12 lenses, board lenses, color sorting lenses, MTV lenses, mono-focal lenses,fixed lenses,lentz, non-distortion lenses,video conference lenses, intercom lenses, pinhole lenses, telecentric lenses, macro lenes,manual iris lenses,відэаназірання лінзы, мегапіксэльныя аб'ектывы,soczewki cctv, obiektywy megapikselowe,CCTV-Objektive, Megapixel-Objektive,линзы cctv, мегапиксельные линзы,lentilles cctv, lentilles mégapixels,CCTV 렌즈, 메가 픽셀 렌즈,kanta cctv, kanta megapixel,CCTV レンズ、メガピクセルレンズ,เลนส์ cctv, เลนส์ล้านพิกเซล,cctv lensler, megapiksel lensler,עדשות cctv, φακοί CCTV, φακοί megapixel,cctv lencsék, megapixeles lencsék,obiettivi cctv,obiettivi megapixel,lensa cctv,lensa megapiksel,ống kính cctv,ống kính megapixel )
