Current:Home > Products - 2/3" 8.0 Megapixel Lens - SMV1236-8M ( 12-36mm ) 2/3"

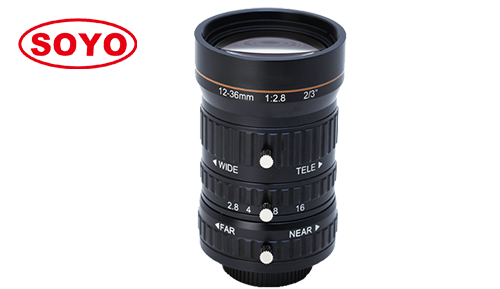

Product name:SMV1236-8M ( 12-36mm ) 2/3"
Product description:


12-36mm 2/3" 8MP Machine Vision FA -3.4%~0.3% Low Distortion F1.4 Industrial Recognition Filter M35.5*0.5mm 4K AI Sort Camera C Mount Megapixel Lenses Made in China Optics


  • High resolution :        8.0 megapixel cover all 4K & 1080P
  • Large format:            2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Wide focal  :              12-36mm focal length support variety working distance.
  • Low distortion :         -3.4% ~0.3% low distortion
  • Application :              Automation, machine vision, medical, life science, ITS, SMT, AOI.

    Model 型号

    SMV1236-8M

    Resolution 像素

    8 Megapixel

    Format 靶面

    2/3"

    Focal Length 焦距

    12-36mm

    B.F.L 光学后焦

    12.6mm

    Aperture (Close) 光圈

    F2.8 Manual iris

    Angle of View (°)

    视场角 D*H*V

    2/3"

    51*41*31

    1/2"

    38*30*23

    1/3"

    /

    M.O.D  最近物距

    0.15m

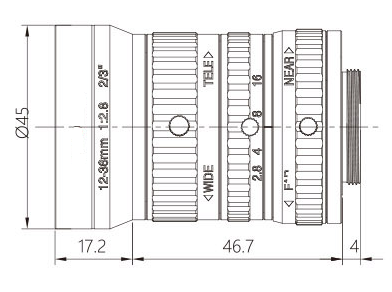

    Size 尺寸

    Φ45 63.9mm

    Distortion 畸变

    -3.4% ~ 0.3%

    Filter Size 滤镜螺纹

    M35.5*0.5mm

    Mount 接口

    C

    Weight 重量

    110g
