Product name:SMV0824-10M ( 8mm ) 2/3" VIP
Product description:


8mm 2/3" 10Megapixel Machine Vision FA TV Distortion 0.73%~0.45% Industrial Face Recognition 4K Camera Megapixel Lens C Mount


  • High resolution :      10 megapixel cover all 4K & 1080P
  • Large format:           2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Big aperture :           F2.0 big aperture makes imaging far better
  • Low distortion :        <0.73%~0.45% TV low distortion use machine vision
  • Compact size :         <38mm diameter
  • Application :             Automation, machine vision, medical, life science, ITS, SMT, AOI.

Model 型号

SMV0824-10M

Resolution 像素

10 Megapixel

Format 靶面

2/3"

Pixel size 像元尺寸

3.45μm*2.4μm

Focal Length 焦距

8mm

Max Image Circle 最大像高

Φ11mm

Aperture (Close) 光圈

F2.4 Manual iris

Angle of View (°) 视场角

2/3"

68.3*57.5*45

1/1.8"

58*49*34

M.O.D 最近物距

0.1m

Relative Illumination 照度

68%

Distortion TV畸变

0.73%~0.45%

B.F.L 光学后焦

9.3mm

CRA 光线夹角

14°

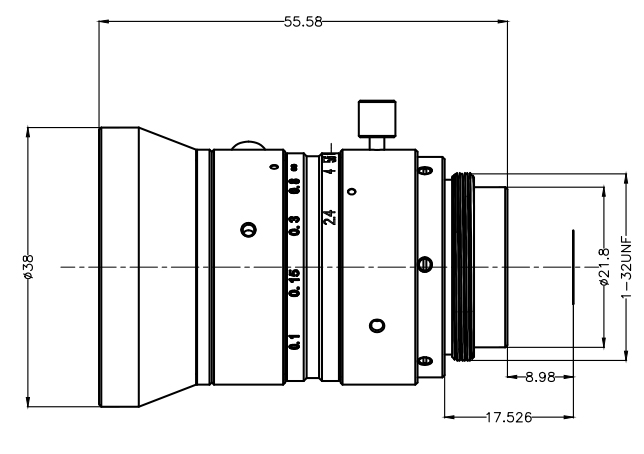

Size 尺寸

Φ38*47mm

Filter Size 滤镜尺寸

M37*0.5

Mount 接口

C

Weight 重量

150g
