Current:Home > Products - 2/3" 10 Megapixel Lenses - SMV3520-10M ( 35mm ) 2/3" VIP

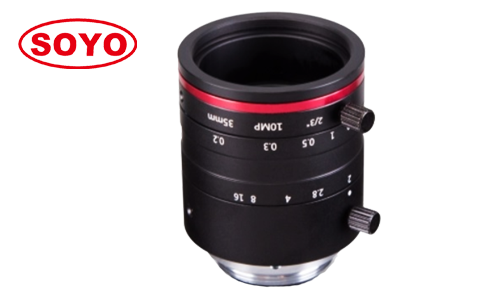

Product name:SMV3520-10M ( 35mm ) 2/3" VIP
Product description:


35mm 2/3" 10MP Machine Vision FA <0.1% Low Distortion Industrial Face Recognition 4K Camera Megapixel Lenses For Sort 3D AOI

  • High resolution :       10 megapixel cover all 4K & 1080P
  • Large format:           2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Big aperture :           F2.0 big aperture makes imaging far better
  • Low distortion :        0.1% low distortion use for measurement
  • Application :             Automation, machine vision, medical, life science, ITS, SMT, AOI.

Model 型号

SMV3520-10M

Resolution 像素

10 Megapixel

Format 靶面

2/3"

Pixel size 像元尺寸

3.45μm*2.4μm

Focal Length 焦距

35mm

Max Image Circle 最大像高

Φ11mm

Aperture (Close) 光圈

F2.0 Manual iris

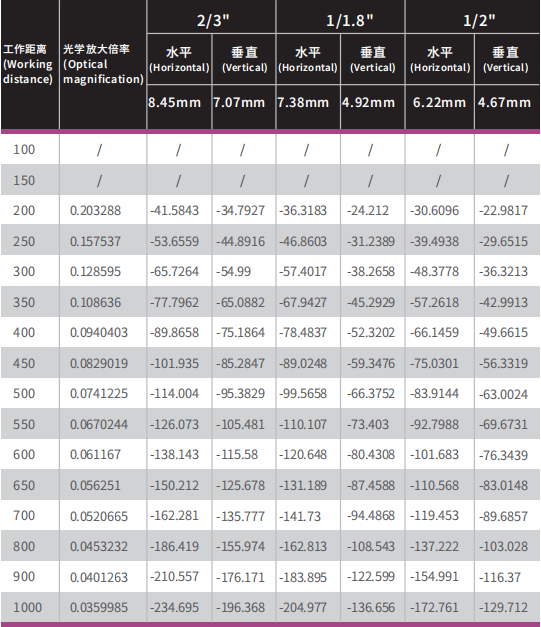

Angle of View (°) 视场角

2/3"

18*14.3*11

1/2"

M.O.D 最近物距

0.2m

Relative Illumination 相对照度

85%

Distortion 畸变

0.1%

B.F.L 光学后焦

12.7mm

CRA 光线夹角

9.5°

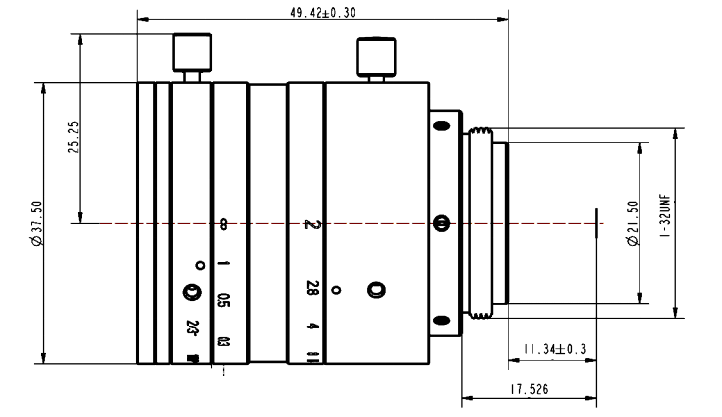

Size 尺寸

Φ37.5*42.8mm

Filter Size 滤镜尺寸

M30.5*0.5

Mount 接口

C

Weight  重量

75g
