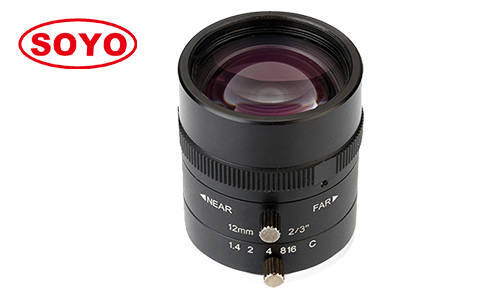

Product name:SMV1214-5M ( 12mm ) 2/3"
Product description:


EOL ( End Of Life ) Soon 即将停产 !!!

12mm 2/3" 5MP Machine Vision FA <1% Low Distortion F1.4 Industrial Recognition 4K ITS AI Sort Camera C Megapixel Lenses


  • High resolution :      5.0 megapixel cover all 4K & 1080P
  • Large format:          2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Big aperture :          F1.4 big aperture makes imaging far better
  • Low distortion :        <1% low distortion use machine vision ITS
  • Application :            Automation, machine vision, medical, life science, ITS, SMT, AOI.



Model 型号

SMV1214-5M

Resolution 像素

5.0 Megapixel

Format  (inch) 靶面

2/3"

Focal Length  (mm) 焦距

12mm

B.F.L (mm ) 光学后焦

15.32mm

Aperture  (Close) 光圈

F1.4 Manual Iris

Angle of View (°)

2/3"

48*38*28

1/2"

1/3"

M.O.D  (m) 最近物距

0.1m

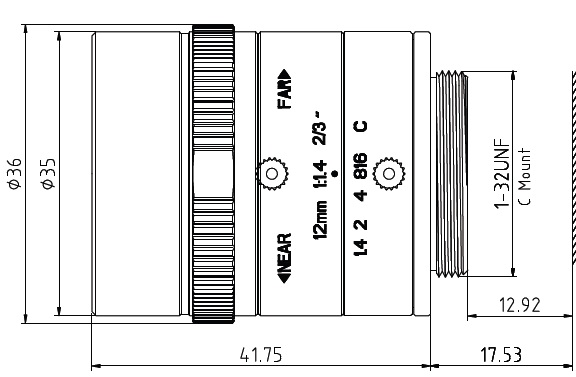

Size 尺寸

Φ36*41.75

Distortion 畸变

<1%

Mount 接口

C

Weight  (g) 重量

105g
