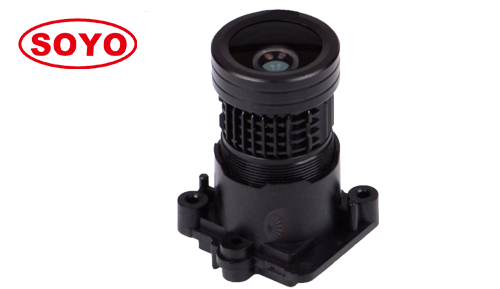

Product name:S18BF0695IR-5M ( 6mm ) 1/1.8"
Product description:

CCTV Lens Features:

  • High resolution:      5.0 megapixel can cover 3MP,1080P, 720P
  • Big aperture:           F0.95 black light support evening dark vision
  • Large format:          1/1.8" can cover all 1/1.8", 1/2", 1/2.5"
  • Wide FOV :             Super wide FOV support short distance view.
  • IR correction :         24h day & night vision
  • Aspherical lens:      Inside Aspherical element helps imaging far better.
  • Application:           Smart home, security surveilance, office, room, bank etc.

Model 型号

S18BF0610IR-5M

Resolution 像素

5.0 Megapixel

IR Correction 红外

IR

Format  (inch) 靶面

1/1.8"

Focal Length  (mm) 焦距

6.0 mm

B.F.L (mm ) 光学后焦

5.8mm

Aperture  (Close) 光圈

F0.95 Fixed iris

Angle of View (°)

视场角 D*H*V

1/1.8"

69*60*34

1/2"

1/2.5"

M.O.D  (m) 最近物距

0.2m

Distortion 畸变

-3.0%

Spectral transmission 透过率

>85%@550nm,>83%@650nm,>70%@850nm

Relative illumination 照度

45%@∅8.8

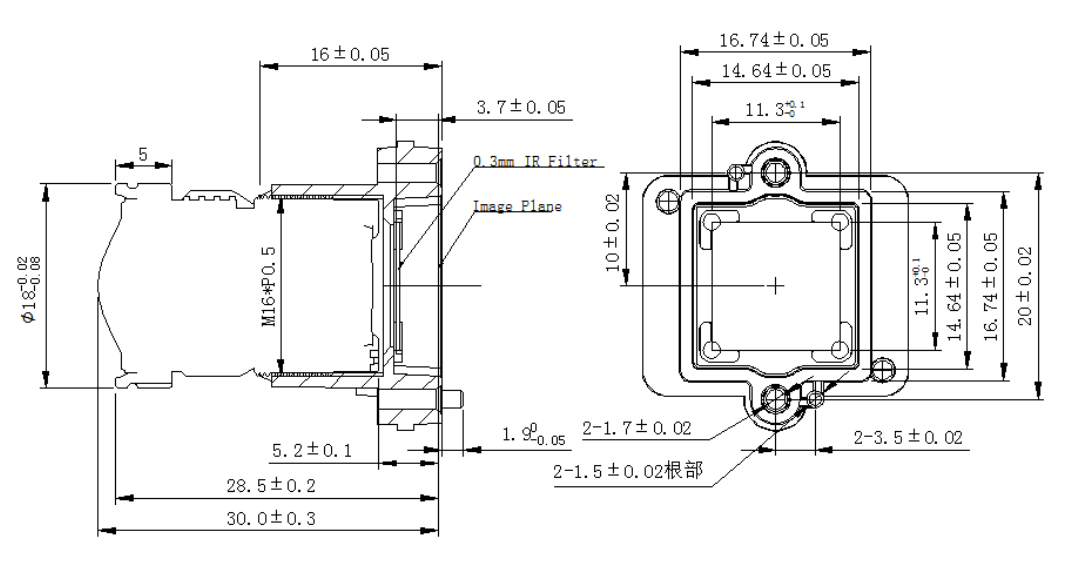

Size 尺寸

Φ18*24.8

T.T.L(mm) 光学总长

30mm

Mount 接口

M16*P0.5

Weight  (g) 重量

16.5g

Marks  备注

1G5P  Element
