Current:Home > Products - Motorized Focus Lenses - S11ITS2510IR-12M ( 25mm ) 1.1" P-iris
Product name:S11ITS2510IR-12M ( 25mm ) 1.1" P-iris
Product description:


1.1" 25mm 12 Megapixel ITS
Lenses Big aperture F1.0 Large Format 1.1" Toll Gate Camera CCTV Lens


  • High resolution :      12-16 megapixel cover all 4K & 1080P
  • Large format:          1.1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Big aperture :          F1.0 super big aperture for night
  • Low distortion :        -7.3%
  • Iris type :                 P-iris, manual iris optional
  • Application :            ITS etc.



Model 型号

S11ITS2510IR-12M

Resolution 像素

12 Megapixel

Format  (inch) 靶面

1.1"

Focal Length  (mm) 焦距

25mm

IR correction 红外矫正

IR

Aperture  (Close) 光圈

F1.0 Manual iris ( P- iris optional )

Angle of View (°)

1.1"

42*33*24

视场角 D*H*V

2/3"

1/2.5"

112*100*80

M.O.D  (m) 最近物距

0.5m

Distortion 畸变

-7.3%

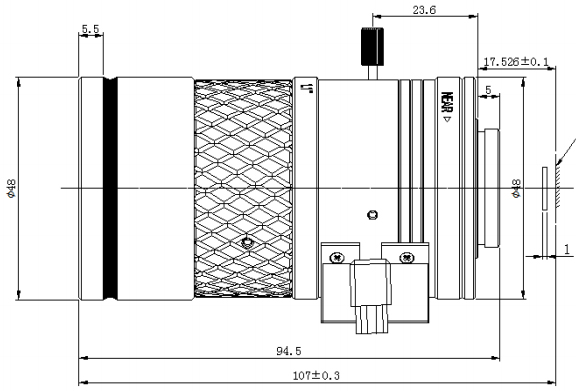

Size 尺寸

Φ48*89.5

Filter size (mm)

/

T.T.L (mm) 光学总长

107mm

Mount 接口

C

Weight  (g) 重量

260g

Marks 备注

Can be used for 16MP camera; Element 13G
