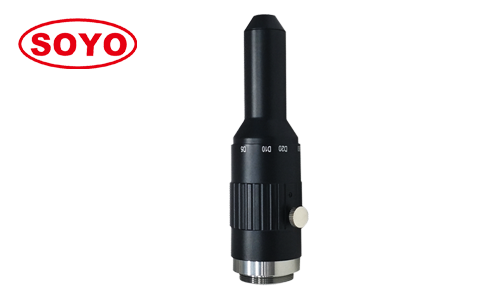

Product name:Inner Barrel 360 Inspection Lens
Product description:

SRV3652 Inner Barrel 360° Inspection 3.0Megapixel FA Lenses 2/3" Camera High Resolution Compact Object Lens ( 360度内壁检测镜头)

* 360°inner barrel inspection 360度内壁管检测

* High resolution & compact size 高像素紧凑尺寸

* Inspect small size object at wide sight 大视野范围内检测小尺寸物体

* Application for tube, auto, container, bottle etc. inside inspection 管类,发动机,瓶罐内壁




Format 靶面

2/3

Resolution 像素

3.0 Megapixel

Image circle 场高

Φ6.6mm

FOV Dia*Height

2/3

Standard 20*23mm ( Min.5*5 / Max.120*123 ) 景深

Wavelength 波长

450~650nm

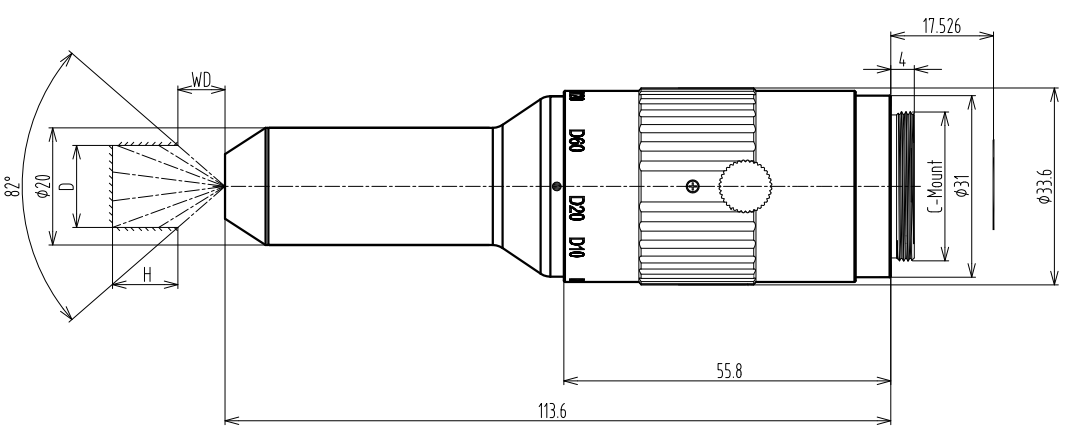

Diamension 尺寸

Φ33.6*113.6mm

Mount 接口

C

Diameter (mm) 直径

Height (mm) 高度

Working Distance (mm) 工作距

5

5

2.7

10

10

6

20

21

11

30

31

17.2

40

41

23

50

51.2

29

60

61.4

35

80

82

46.5

100

102

58.3

120

123

70

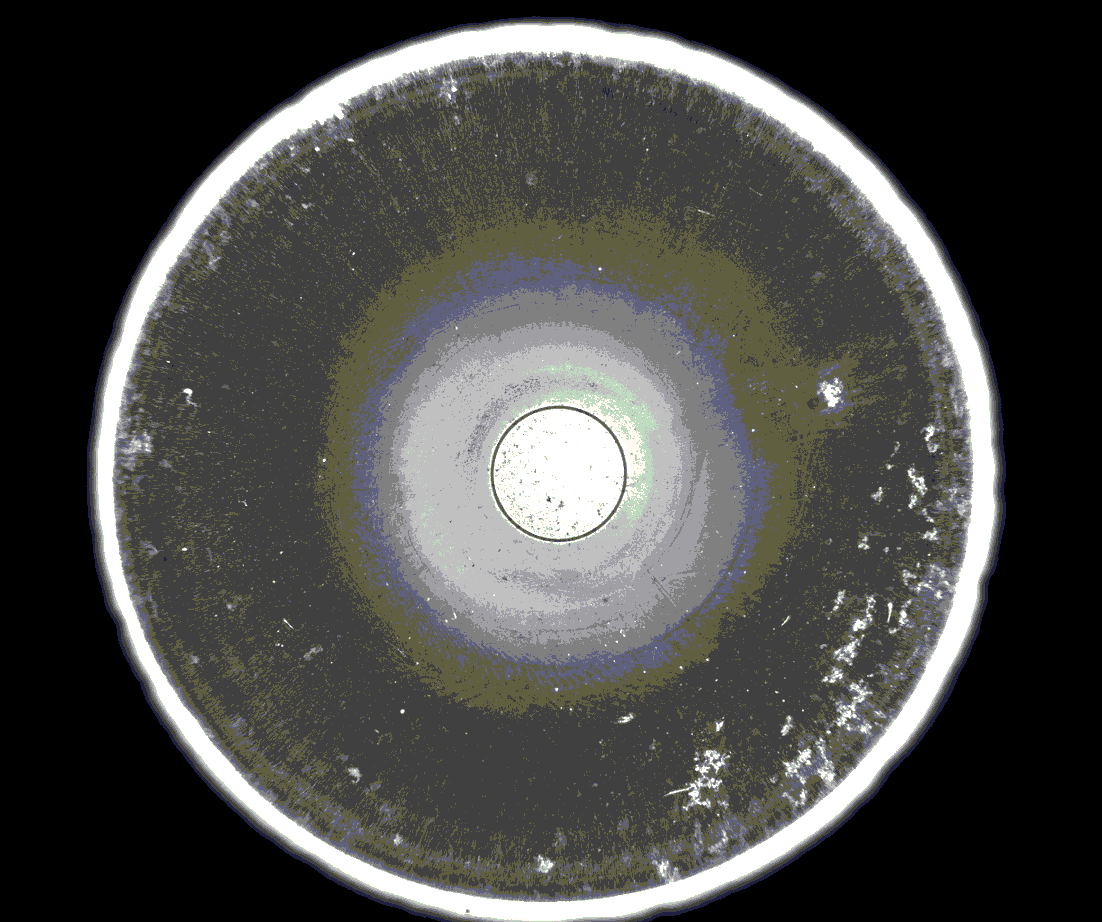

Picture 1 :  Tea cup inner side inspection

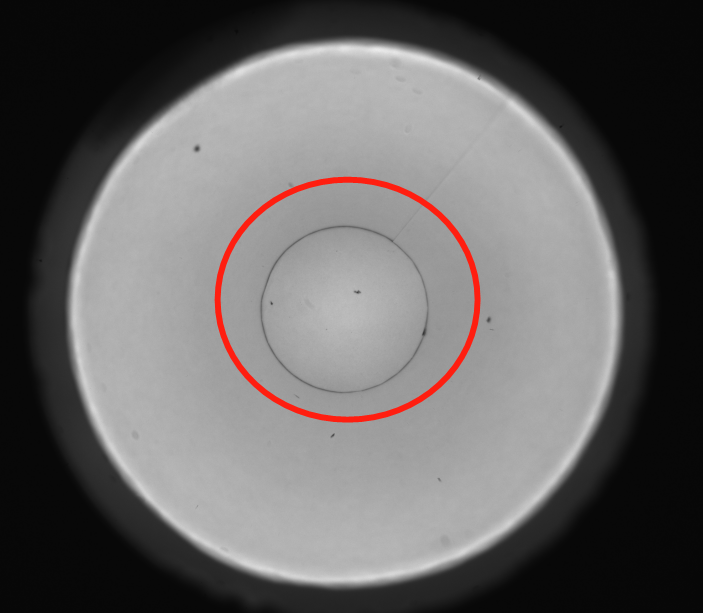

Picture 2:  Stainless steel pipe inner side inspection
