Current:Home > Products - Mono-focal Lenses - SFC1220IR-5M ( 12mm ) 1/2.5"

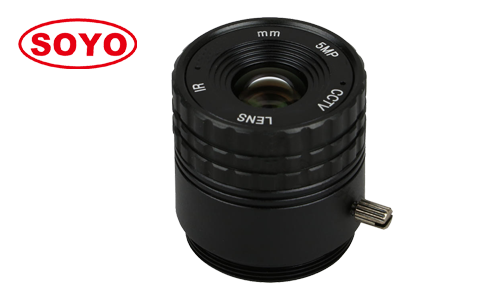

Product name:SFC1220IR-5M ( 12mm ) 1/2.5"
Product description:


12mm 1/2.5" 5.0 Megapixel CCTV Lenses For Bank School Room Use Fixed Focal Length CS Lens Waveband 760~850nm

  • High resolution:       5.0 megapixel can cover 3MP,1080P
  • IR Correction:          24h day & night vision, 760~850nm waveband.
  • Small size :              Very small size support most box camera size.
  • Application:            Bank, office, room, corridor, bldg., garden.



Model 型号

SFC1220IR-5M

Resolution 像素

5.0 Megapixel

Format  (inch) 靶面

1/2.5"

Focal Length  (mm) 焦距

12 mm

IR Correction 红外

IR

Aperture  (Close) 光圈

F2.0 Fixed iris

Angle of View (°)

视场角 D*H*V

1/2.5"

35*28*21

1/2.7"

29*23*17.1

1/3"

21*17*13

M.O.D  (m) 最近物距

0.3m

Distortion 畸变

Max - 4.44%

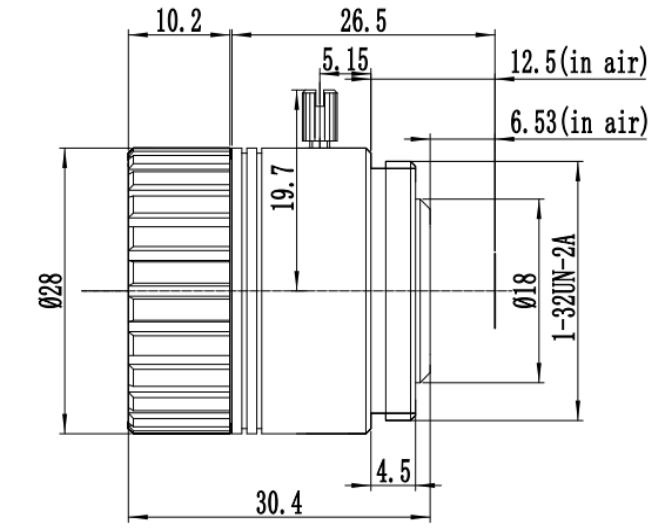

Size 尺寸

Φ28*30.4mm

BFL(mm) 光学后焦

7.6mm

MFL (mm) 机械后焦

6.53mm

T.T.L (mm) 光学总长

36.7mm

Mount 接口

CS

Weight (g) 重量

35g

Marks 备注
