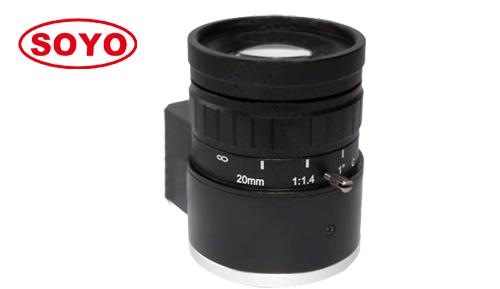

Product name:S1ITSD2014-8M ( 20mm ) 1"
Product description:

20mm 1" 8.0 Megapxiel ITS Lenses For Intelligent Transportation System Star-light Low Distortion High Speed Way Toll Gate Exit/Etrance CCTV Camera Lens

  • High resolution :      8.0 megapixel cover all 4K & 1080P
  • Iris type :                 DC iris
  • Large format:          1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion :        <0.4% low distortion use machine vision ITS
  • Application :            Machine vision, FA, ITS etc.

Model 型号

S1ITSD2014-8M

Resolution 像素

8 Megapixel

Format (inch) 靶面

1"

Focal Length (mm) 焦距

20mm

Aperture (Close) 光圈

F1.4 Manual Iris

Angle of View (°) DxHxV

视场角 对角x水平x垂直

1"

44.3*35.3*22.8

2/3"

30.4*24.8*18.7

1/2"

22.6*18.2*13.7

M.O.D (m) 最近物距

0.5m

Distortion 畸变

-2.4%

B.F.L (mm) 光学后焦

12.34mm

M.F.L (mm) 机械后焦

11.7~13.5mm

T.T.L 光学总长

75.5mm

CRA (°)主光线夹角

<19.36°

Dimension 尺寸

Φ43.5*63.8

Mount 接口

C

Weight (g) 重量

230g

Marks 备注
