Current:Home > Products - 1/1.8" 6.0 Megapixel Lens - SFA0618-6M ( 6mm ) 1/1.8"

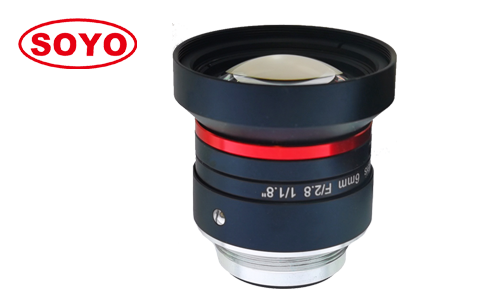

Product name:SFA0618-6M ( 6mm ) 1/1.8"
Product description:


6mm 1/1.8" 6.0 Megapixel Lenses Machine Vision FA Low Distortion Industrial Camera Lens Automation Scanning Recognition AI Sort Recognition


  • High resolution :       6.0 megapixel cover all 4K & 1080P
  • Large format:           1/1.8" size covering 1/1.8", 1/2", 1/3 camera
  • Mini size :                 Small size design makes it match most application
  • Low distortion :         Low distortion for measurement and vision
  • Application :             Automation, machine vision, medical, life science, ITS, SMT, AOI.


Model 型号

SFA0628-6M

Format 靶面

1/1.8”(Φ9.5mm)

Resolution 像素

6.0 Megapixel( 2.4μm pixel size )

Focal Length 焦距

6mm

Aperture (Close) 光圈

F2.8 Manual iris

Angle of View (°) 视场角

1/1.8"

75*61.2*48

M.O.D最近物距

0.1m

Distortion(TV) 畸变

Min.0.1% (200~400mm), Max 0.8%

Filter Size 滤镜尺寸

M37.5*P0.5

Relative illumination 相对照度

62%  (H=4.5mm WD=INF)

Transmission 透过率

AT486~656nm T≥85%

T.T.L 光学总长

49.5mm

B.F.L 光学后焦

9.87mm

CRA 主光线夹角

13.4°

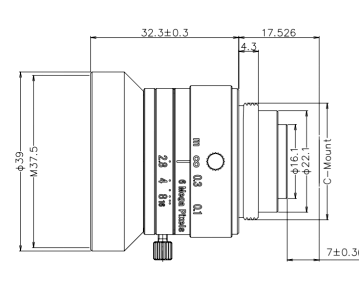

Dimension 尺寸

Φ39*32.3

Mount 接口

C

Weight 重量

65g

Marks 备注

8G
