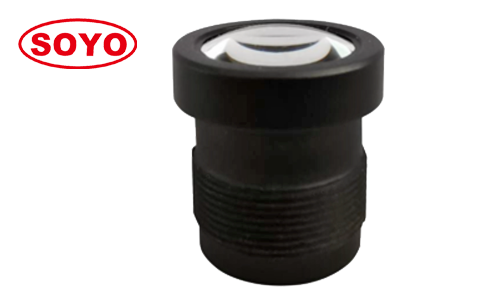

Product name:SND0406IR-MF ( 4mm ) 1/4" M6
Product description:


4mm 1/4" 1.3 Megapixel Lenses S-mount M6 Machine Vision FA <1% Low Distortion Scanning Recognition Video Camera CCTV Lens

  • High resolution :       1.3 megapixel
  • Small format:           1/4" S-mount M6
  • Low distortion :        <1% low distortion
  • Small size:               Small size disign makes it various application
  • Application :             Video converference, recognition, scanner, sports DV, machine vision.

Model 型号

SND0406IR-MF

Resolution 像素

1.3 Megapixel

Format 靶面

1/4"

Pixel size 像元尺寸

/

Focal Length 焦距

4.0mm

Max Image Circle 最大像高

/

Aperture (Close) 光圈

F6.0 Fixed iris

Angle of View (°) 视场角

1/4"

59°Φ4.5 ; 62°@4.8

1/5"

M.O.D 最近物距

0.25m

Relative Illumination 相对照度

/

Distortion 畸变

1%

B.F.L 光学后焦

3.46mm

CRA 光线夹角

20°

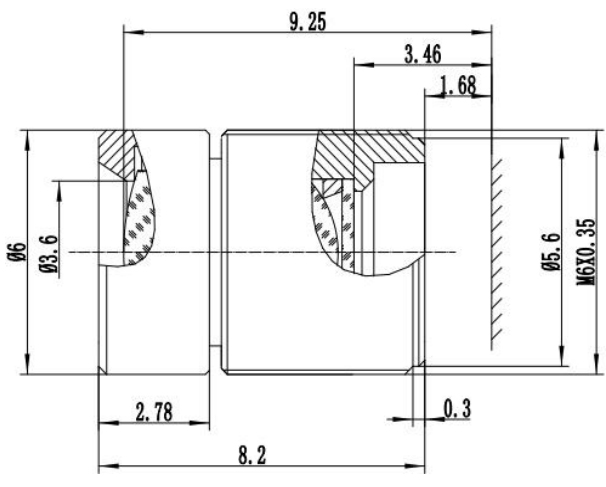

Size 尺寸

Φ6*8.2mm

Filter Size 滤镜尺寸

/

Mount 接口

M6*0.35p

Weight 重量

15g
