Current:Home > Products - 6K 12Megapixel Zoom Lenses - SMZ1575IR-10M ( 15-75mm ) 1/1.7"

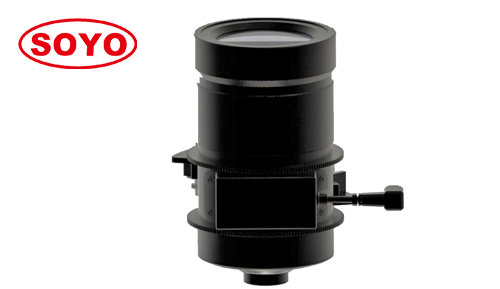

Product name:SMZ1575IR-10M ( 15-75mm ) 1/1.7"
Product description:


15-75mm 1/1.7" 6K Megapixel Motorized Zoom Lenses CCTV Camera ITS Industrial Surveillance Highspeed Way Outside River Building Square Forest C/CS Lens

  • High resolution:        6K megapixel cover 10MP, 4K, 5MP
  • Suitable F. length:    15-75mm making up short distance surveillance.
  • Big aperture:             F1.4 suitable for dark vision
  • Large format:            1/1.7" large format covering 1/1.8", 1/2"
  • Compact size :          Compact small size lens for special application.
  • Optional Iris :            DC iris ( P-iris optional )
  • Application:             Highway,train, industry, power station, city surveillance.

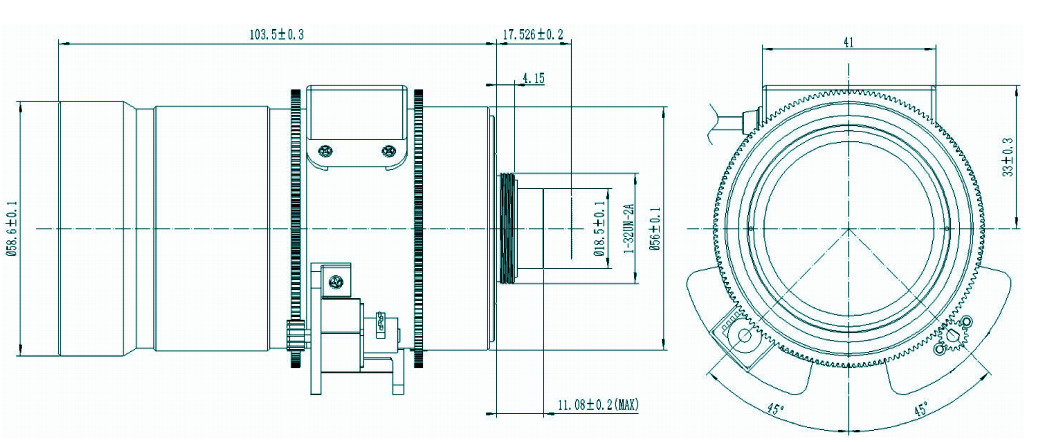

( Drag the drawing to see large size )



Model 型号

SMZ1575IR-10M

Resolution 像素

Support 12 Megapixel

IR Corrected 日夜

IR

Format 靶面

1/1.7"

Focal Length 焦距

15-75mm

Aperture (Close/360) 光圈

F1.4 DC Iris ( P-iris optional )

Angle of View (°)

视场角DxHxV

1/1.7"

33*26*20 ( 4:3)

1/1.7"

31*27*14 (16:9)

1/2"

28*22.2*16.5

M.O.D 最近物距

1.5m

Distortion 畸变

-6.7%~0.7% (1/1.7”)

C.R.A 主光线夹角

<1.3° Tele; <0.52° Wide

Dimension 尺寸mm

Φ58.6*114.58mm

B.F.L 光学后焦

8.58~11.69mm

M.F.L 机械后焦

6.96~10.07mm

Mount 接口

C

Weight 重量

300g

Marks 备注

-30°~+70°

Character 特性

Coating 400~900nm
