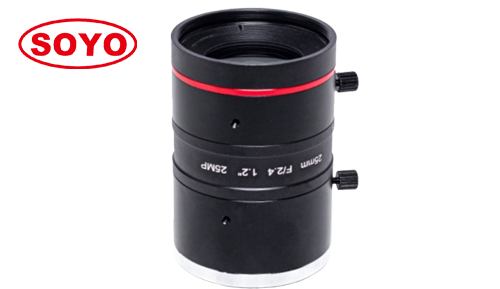

Product name:S12MV2524-25M ( 25mm ) 1.2"
Product description:


25mm 1.2" 25MP Machine Vision FA -0.04% TV Low Distortion Industrial Recognition 8K Camera Megapixel Optical Lenses Automatic CCTV Lens C Mount

  • High resolution :       25 megapixel cover all 8K & 4K
  • Large format :          1.2" size covering 1.1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion:         -0.04% TV / 0.32% Optical low distortion for machine vision
  • Application :             Automation, machine vision, medical, life science, ITS, SMT, AOI

Model 型号

S12MV2524-25M

Resolution 像素

25 Megapixel

Format 靶面

1.2" (2.74μm)

Focal Length 焦距

25mm

Max image circle 最大像高

Φ19.5mm

Aperture (Close) 光圈

F2.4 Manual iris

Angle of View (°) 视场角

1.2"

41.2*31.5*27.4

M.O.D 最近物距

0.15m

Relative Illumination 照度

69% ( WD=300mm F2.4 )

Distortion 畸变

-0.04% ( TV ) ; -0.32% (Optical )

B.F.L 光学后焦

19.495mm , WD=800mm

CRA 光线夹角

6.5°

Size 尺寸

Φ40*58.44mm

Filter Size滤镜尺寸

M37*P0.5-7H

Mount 接口

C

Weight重量

300g

Marks 备注

AT430~680nm T≥85%;  12G Element

Projector 投影

Center 200lp/mm; Edge Φ16 160lp/mm
