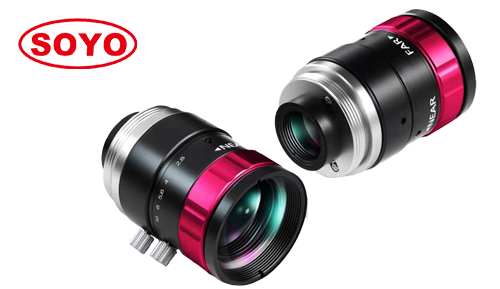

Product name:SMV0828CL-10M ( 8mm ) 2/3"
Product description:


8mm 2/3" 10MP Compact Machine Vision FA Lens -0.89% Low Distortion Industrial Computer Vision 3D Inspection 4K Camera Megapixel Lenses

  • High resolution :      10 megapixel cover all 4K & 1080P
  • Large format:           2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Low distortion :        -0.89% low distortion use machine vision
  • Compact size :         <29mm diameter
  • Application :             Automation, machine vision, medical, life science, ITS, SMT, AOI.

Model 型号

SMV0826CL-10M

Resolution 像素

10 Megapixel

Format 靶面

2/3"

Focal Length 焦距

8mm

Max image circle 最大像高

Φ11.4mm

Aperture (Close) 光圈

F2.8  Manual iris

Angle of View (°) 视场角

2/3"

67.2*53.5*46

1/1.8"

56.6*45*34.1

1/2"

51.4*42*32.1

M.O.D 最近物距

0.11m

Distortion 畸变

-1.98%@0.11m ; -0.89%@0.4m

Size 尺寸

Φ29*43.23mm

Filter Size 滤镜尺寸

M27*P0.5

Mount 接口

C

Weight 重量

115g
