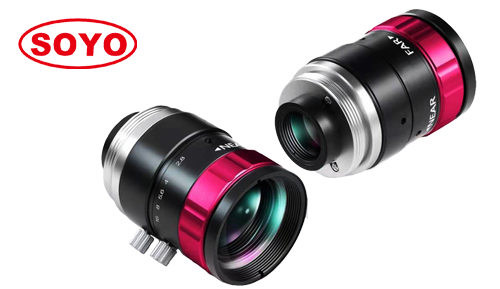

Product name:SMV1222CL-10M ( 12mm ) 2/3"
Product description:


12mm 2/3" 10MP Compact Machine
Vision FA Lens 0.02% Low Distortion Industrial Computer Vision 3D Inspection 4K Camera Megapixel Lenses

  • High resolution :      10 megapixel cover all 4K & 1080P
  • Large format:           2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Low distortion :        0.02% low distortion use machine vision
  • Compact size :         <29mm diameter
  • Back F.L :                 13.4mm
  • Application :             Automation, machine vision, medical, life science, ITS, SMT, AOI.


Model 型号

SMV1220CL-10M

Resolution 像素

10 Megapixel

Format 靶面

2/3"

Focal Length 焦距

12mm

Max image circle 最大像高

Φ11.4mm

Aperture (Close) 光圈

F2.0  Manual iris

Angle of View (°) 视场角

2/3"

48.1*39.7*27.5

1/1.8"

39.7*33.1*22.3

1/2"

35.8*29*21.9

M.O.D 最近物距

0.15m

Distortion 畸变

-1.2%@0.15m ; 0.02%@0.4m

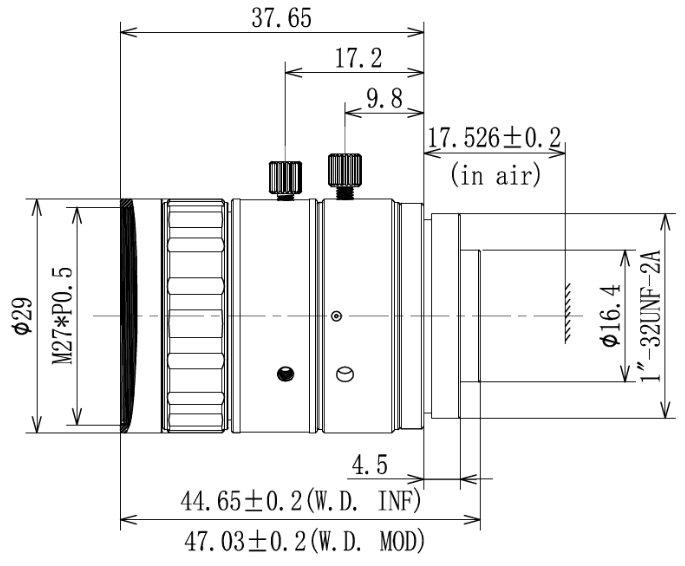

Size 尺寸

Φ29*37.65mm

Filter Size 滤镜尺寸

M27*P0.5

Mount 接口

C

Weight 重量

115g
