Current:Home > Products - 2/3" 10 Megapixel Lenses - SMV1620CL-10M (16mm) 2/3"

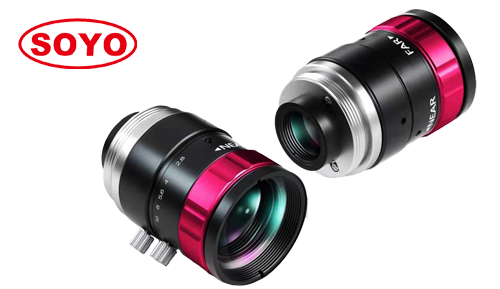

Product name:SMV1620CL-10M (16mm) 2/3"
Product description:


16mm 2/3" 10MP Compact Machine
Vision FA Lens -0.013% Low Distortion Industrial Automation Computer 3D Inspection 4K Camera Megapixel Lenses BFL 9.3mm

  • High resolution :      10 megapixel cover all 4K & 1080P
  • Large format:           2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Low distortion :        -0.013% low distortion use machine vision
  • Compact size :         <29mm diameter
  • Application :             Automatic vision, medical, life science, Inspection, SMT, AOI.


Model 型号

SMV1620CL-10M

Resolution 像素

10 Megapixel

Format 靶面

2/3"

Focal Length 焦距

16mm

Max image circle 最大像高

Φ11.4mm

Aperture (Close) 光圈

F2.0 Manual iris

Angle of View (°) 视场角

2/3"

37.4*29.3*24.7

1/1.8"

30.8*26.8*17.3

1/2"

27.6*22.4*16.8

M.O.D 最近物距

0.1m

Distortion 畸变

-0.9%@0.1m ; -0.13%@0.4m

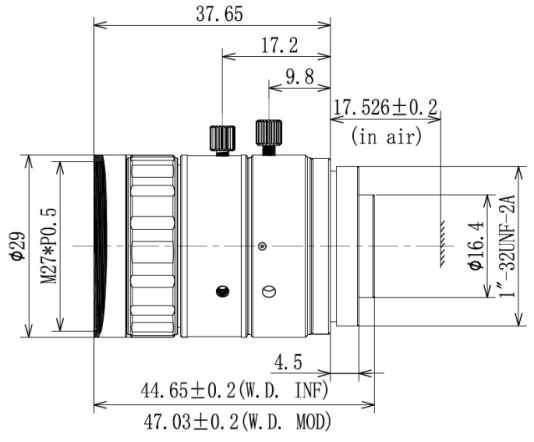

Size 尺寸

Φ29*37.65mm

Filter Size 滤镜尺寸

M27*P0.5

Mount 接口

C

Weight 重量

115g
