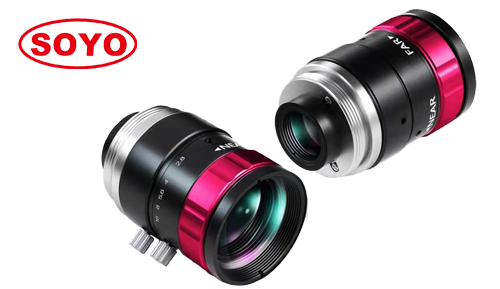

Product name:SMV3520CL-10M (35mm) 2/3"
Product description:


35mm 2/3" 10MP Compact Machine
Vision FA Lens -0.045% Low Distortion Industrial Automation Computer 3D Inspection 4K Camera Megapixel Lenses


  • High resolution :      10 megapixel cover all 4K & 1080P
  • Large format:           2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Low distortion :        -0.045% low distortion use machine vision
  • Compact size :         <29mm diameter
  • Back F.L :               14.93mm
  • Application :             Automatic vision, medical, life science, Inspection, SMT, AOI.


Model 型号

SMV3520CL-10M

Resolution 像素

10 Megapixel

Format 靶面

2/3"

Focal Length 焦距

35mm

Max image circle 最大像高

Φ11.4mm

Aperture (Close) 光圈

F2.0 Manual iris

Angle of View (°) 视场角

2/3"

16.5*12.8*10.7

1/1.8"

13.5*11.7*7.4

1/2"

12.1*9.6*7.2

M.O.D 最近物距

0.2m

Distortion 畸变

-0.08%@0.2m ; -0.045%@0.4m

Size 尺寸

Φ29*37.65mm

Filter Size 滤镜尺寸

M27*P0.5

Mount 接口

C

Weight 重量

115g
