Current:Home > Products - 2/3" 10 Megapixel Lenses - SMV5028CL-10M (50mm) 2/3"

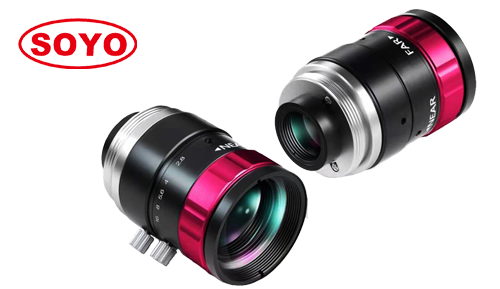

Product name:SMV5028CL-10M (50mm) 2/3"
Product description:


50mm 2/3" 10MP Compact Machine
Vision FA Lens 1% Low Distortion Industrial Automation Computer 3D Inspection 4K Camera Megapixel Lenses


  • High resolution :      10 megapixel cover all 4K & 1080P
  • Large format:           2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Low distortion :        1% low distortion use machine vision
  • Compact size :         <35mm diameter
  • Application :             Automatic vision, medical, life science, Inspection, SMT, AOI.


Model 型号

SMV5028CL-10M

Resolution 像素

10 Megapixel

Format 靶面

2/3"

Focal Length 焦距

50mm

Max image circle 最大像高

Φ11mm

Aperture (Close) 光圈

F2.8 Manual iris

Angle of View (°) 视场角

2/3"

12.6*10*7.5

M.O.D 最近物距

0.2m

Distortion 畸变

±1%

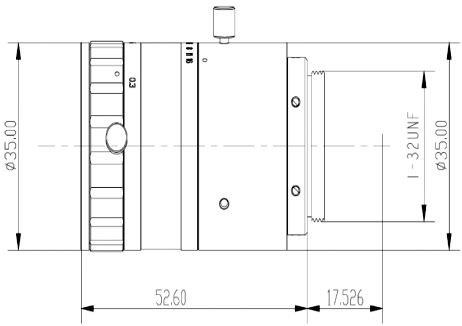

Size 尺寸

Φ35*52.6mm

Filter Size 滤镜尺寸

M30.5*P0.5

Mount 接口

C

Weight 重量

115g
