Current:Home > Products - 4K M12 Lenses - SBF2322IR-4M ( 2.3mm ) 1/3"

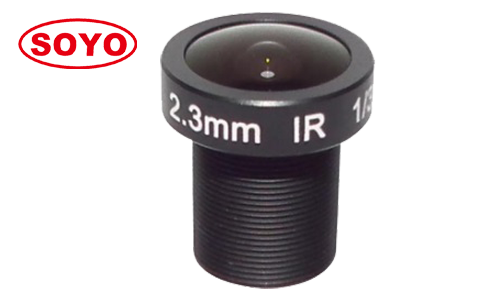

Product name:SBF2322IR-4M ( 2.3mm ) 1/3"
Product description:


1/3" 2.3mm 4.0 Megapixel CCTV Lens Camera Lenses
Security Surveillance S mount M12 IR Day Night dome bullet China optics


  • High resolution:      4 megapixel
  • Big aperture:           F2.2 big aperture support evening dark vision
  • Suitable format:      1/3"
  • IR correction :         24h day & night vision
  • Application:           Smart home, security surveilance, office, room, bank etc.

Model 型号

SBF2322IR-4M

Resolution 像素

4.0 Megapixel

IR Correction 红外

IR

Format 靶面

1/3”  ( Max image Φ6.3)

Focal Length 焦距

2.3mm

Aperture 光圈

F2.2 Fixed Iris

Angle of view 视场角

1/3”

172.3*126.4*91.6

1/4”

117.3*91.7*67.8

Distortion 畸变

-91.3%@1/3 ; -41.7%@1/4

M.O.D 最近物距

0.3m

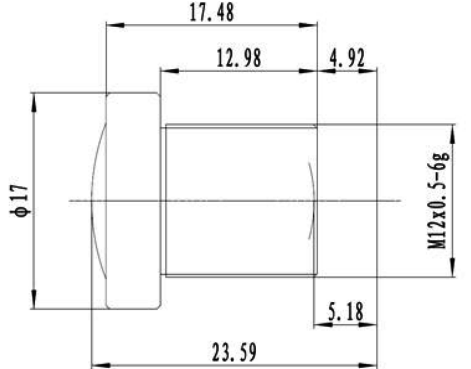

Size 尺寸

Φ17*18.41mm

CRA 主光线夹角

<20.75°

TTL 光学总长

23.59mm

Mount 接口

M12

Weight 重量

6.5g
