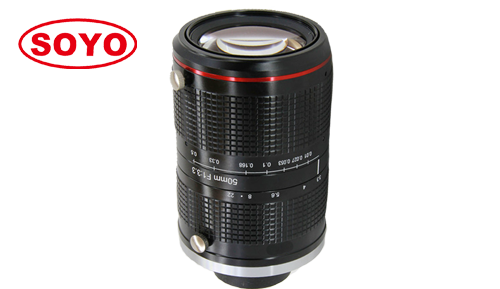

120Megapixel Lenses 2.2μm 50mm Φ48 format <0.02% Low Distortion Machine Vision Factory Automation Positioning Measurement China Camera Optical CCTV Line Scan F Mount Optical Lens
Download PDF : SLS5013F-120M
-
High resolution : 2.2μm 120 Megapixel top high
-
Large format: Φ48
-
Magnification : 0.5x ~ 0.01x
-
Low distortion : Low distortion <0.02% for measurement and vision
-
Application : Automation, machine vision, medical, life science, measurement.
|
Model 型 号
|
SLS5013F-120M ( Download )
|
|
Mag. 倍率
|
0.5x
|
0.33x
|
0.168x
|
0.1x
|
0.053x
|
0.027x
|
0.01x
|
|
W.D 工作距 mm
|
85
|
141
|
299
|
517.8
|
999
|
1999
|
5381
|
|
Resolution
|
2.2μm ( 分辨率 ）
|
|
Distortion 畸变
|
<0.02%
|
|
AOV (D) 视野
|
47°
|
|
Max Image画幅
|
Φ48
|
|
E.F.L 焦距
|
55mm
|
|
Aperture 光圈
|
F3.3~22
|
|
Mount 接口
|
M72*P0.75
|
|
Dimension 尺寸
|
Φ74*132.3mm
|
|
Marks 备注
|
|
|
