Current:Home > Products - 6K 12Megapixel Zoom Lenses - S11MZ1442PIR-12M ( 14-42mm ) 1.1"
Product name:S11MZ1442PIR-12M ( 14-42mm ) 1.1"
Product description:


14-42mm 1.1" 12Megapixel Motorized Zoom Lenses Security Surveillance CCTV Lens Camera Optics ITS LPR Liscence Plate Recognition Industrial IR DC /3 Motors / P-iris C Mount NIR China Lentz

PDF Datasheet : S11MZ1442PIR-12M

  • High resolution:        12 megapixel covering 4K, 1080P
  • Suitable F. length: 14-42mm making up short distance surveillance.
  • Big aperture:             F1.5 suitable for dark vision
  • Large format:            1.1" large format covering all 1",1/1.7",1/2"
  • Compact size :          Compact small size lens for special application.
  • Optional Iris :            P-iris & 3 motors, DC iris for option
  • Application:             Highway,train, industry, power station, city surveillance

Model 型号

S11MZ1442PIR-12M

Resolution 像素

12 Megapixel

IR Corrected 日夜

IR

Format 靶面

1.1" (Φ17.6mm)

Focal Length 焦距

14-42mm

Aperture (Close/360) 光圈

F1.5 P-Iris

Angle of View (°)

视场角DxHxV

1.1"

W 61*34.2*35 / T 26*21.3*15 ( IMX418)

1"

W 56*49*26 / T 24*21*11.2 (IMX305)

1/1.2"

W 45*39*22 / T 19*17*9.4 (IMX485)

M.O.D 最近物距

W 1.5m / T 2.5m

Distortion 畸变

-9%~1.2% (1.1”) / -5%~0.3% (1/1.2)

C.R.A 主光线夹角

5.9° T; 6.1°W (1.1) / 6.3°T; 7° W ( 1/1.2)

Relative illumination 相对照度

44% @ Φ8.8mm Wide; 43% Tele

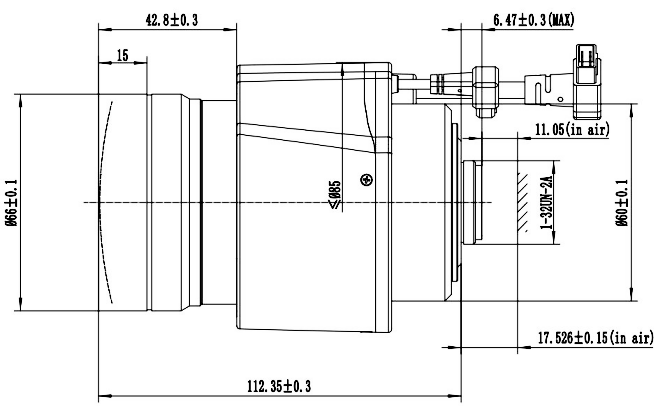

Dimension 尺寸

Φ66*112.35mm

B.F.L 光学后焦

12.48mm

M.F.L 机械后焦

11.61mm

Mount 接口

C

Weight 重量

680g

Marks 备注

-30°~+70°; Coating 400~900nm
