Current:Home > Products - 1/1.8" 6.0 Megapixel Lens - SFA35H24-3M ( 3.5mm ) 1/1.8"

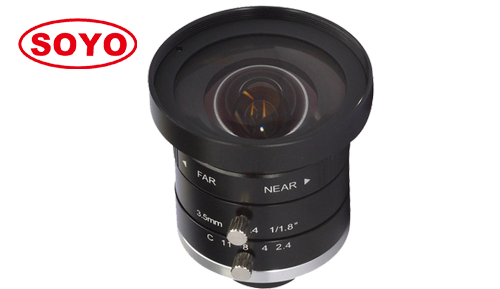

Product name:SFA35H24-3M ( 3.5mm ) 1/1.8"
Product description:


3.5mm 1/1.8" 3.0 Megapixel Machine Vision Lenses FA Low Distortion Industrial Camera Lens Automation Measurement Positioning Computer AI C Mount China Optics Fixed Focal Length Manual Iris 超大视场角3.5mm大靶面1/1.8"像素300万紧凑型视觉定位测量镜头可调光圈低畸变-1.23%


  • High resolution :       3.0 megapixel
  • Large format:           1/1.8" size covering 1/1.8", 1/2", 1/3 camera
  • Mini size :                 Small size design makes it match most application
  • Low distortion :         Low distortion -1.23% for measurement and vision
  • Application :             Automation, machine vision,3D, Computer Vision AI.



Model 型号

SFA35H24-3M

Resolution 像素

3 Megapixel

Format 靶面

1/1.8" (Φ9mm)

Focal Length 焦距

3.5mm

Aperture (Close) 光圈

F2.4  Manual iris

Angle of View (°)

视场角

1/1.8"

105*94.3*78  (425*351*261mm)

1/2"

100*88*71  (386*312*231mm)

1/3"

84.2*71.1*55.6  (292*231*170mm)

M.O.D 最近物距

0.15m

Distortion 畸变

<-1.23% @y=4.5mm

B.F.L 光学后焦

13.29mm

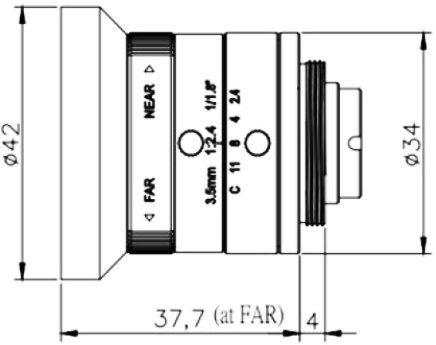

Size 尺寸

Φ42*37.7mm

Filter Size 滤镜尺寸

M40.5*0.5

Mount 接口

C

Weight 重量

-

Magnification 倍率

-0.032x
