| Product name：Motorized Mag. Bi-telecentric Lens | ||||||||||||||||||||||||
| Product description： | ||||||||||||||||||||||||
Motorized Magnification Bi-telecentric Lenses Image Size 8um 2/3" 0.5x~2x Vari-magnification Working Distance 65mm TV Distortion <0.05% Telecentricity 0.05° Camera Lens Positioning Measurement Defect Inspection 电动变倍双远心镜头超大景深定位、瑕疵检测、测量等无需改变工作距离实现0.5倍到2倍倍率
* Sensor size : 2/3"
* Character : No need to move working distance on from 0.5x to 2x
Model 型号
SMM-DM6552
Resolution 像素
8μm
Format 靶面
2/3"
Magnification 倍率
0.5x ~ 2x
N.A
0.04
W.D 工作距离
65mm
Size 尺寸

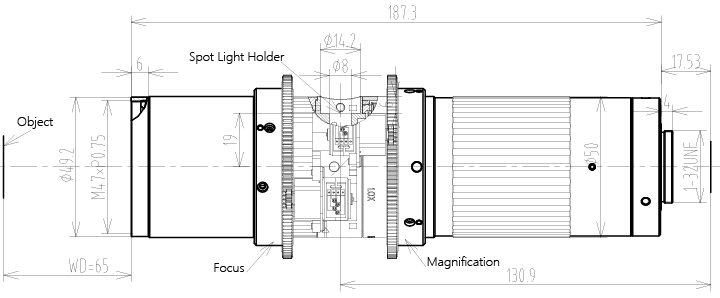

Φ49.2*187.3mm
Distortion TV畸变
<0.05%
Mount 接口
C
Telecentricity 远心度
0.05°
Weight 重量
-
Marks (备注)
motorized magnification
|
||||||||||||||||||||||||
