25mm 1.1" 12 Megapixel Macro Lens Machine Vision FA Lens Low Distortion 0.07% Camera Factory Automation C Mount
-
High resolution : 12 megapixel cover all 4K & 1080P
-
Large format: 1.1" size covering 1", 2/3", 1/1.8" camera
-
Big aperture : F2.8 big aperture makes imaging far better
-
Low distortion : 0.07% low distortion use machine vision
-
Woring distance: 65-206mm
-
Magnification : 0.1x-0.4x
-
Application : Machine vision, FA, high quality.
|
Model 型号
|
SMC2528-12M
|
|
Resolution 像素
|
12 Megapixel
|
|
Format （inch）靶面
|
1.1"
|
|
Focal Length （mm）焦距
|
25mm
|
|
Aperture（Close）光圈
|
F2.8 Manual Iris
|
|
Angle of View (°)
视场角 HxV
|
1.1"
|
140*105 ( 0.1x)
|
|
2/3"
|
|
|
1/2"
|
|
|
Working distance（mm）工作距
|
65-206mm
|
|
Magnification 倍率
|
0.1x-0.4x
|
|
Distortion 畸变
|
<0.07%
|
|

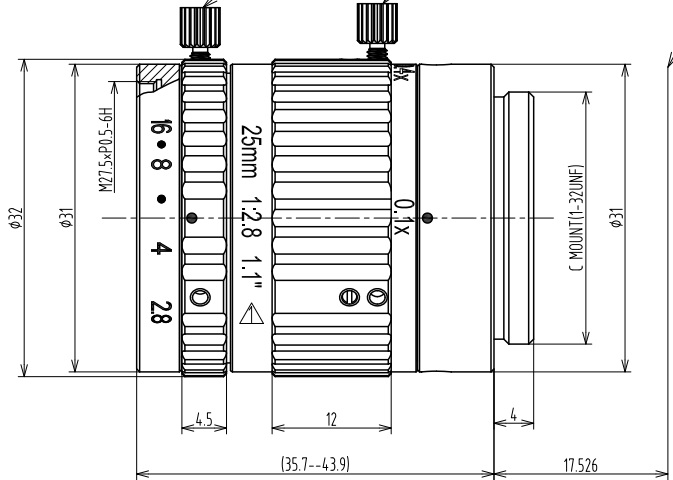

Size 尺寸
|
Φ32*39.7
|
|
Mount 接口
|
C
|
|
Weight （g）重量
|
210g
|
|
