>> The Macro Lenses - SMC5028-12M ( 50mm ) 1.1"
Products Name: SMC5028-12M ( 50mm ) 1.1"


50mm 1.1" 12 Megapixel Macro Lens Machine Vision FA Lens Low Distortion 0.05% Camera Factory Automation C Mount

  • High resolution :      12 megapixel cover all 4K & 1080P
  • Large format:          1.1" size covering 1", 2/3", 1/1.8" camera
  • Big aperture :          F2.8 big aperture makes imaging far better
  • Low distortion :        0.05% low distortion use machine vision
  • Woring distance:      95-132mm
  • Magnification :         0.5x-0.8x
  • Application :            Machine vision, FA, high quality.




    Model 型号

    SMC5028-12M

    Resolution 像素

    12 Megapixel

    Format inch)靶面

    1.1"

    Focal Length mm)焦距

    50mm

    ApertureClose)光圈

    F2.8 Manual Iris

    Angle of View (°

    视场角 HxV

    1.1"

    28*21 (0.5x)

    2/3"

    1/2"

    Working distancemm)物距

    95-132mm

    Magnification 倍率

    0.5x-0.8x

    Distortion 畸变

    <0.05%

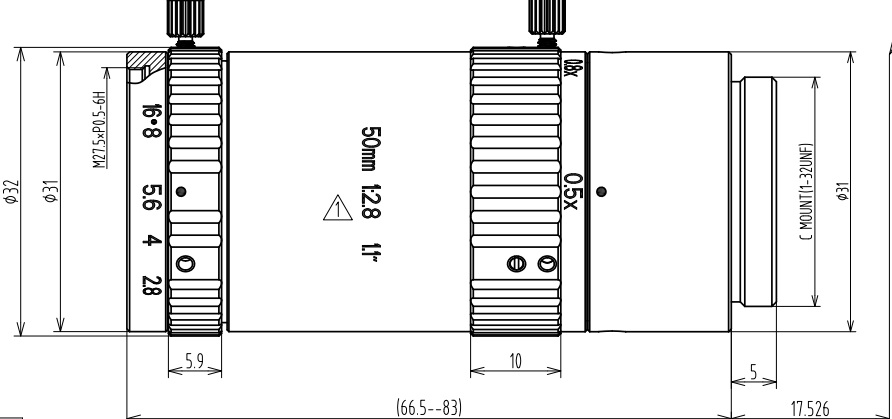

    Size 尺寸

    Φ32*71.5

    Mount 接口

    C

    Weight g)重量

    210g
