>> The Macro Lenses - SMC7538-12M ( 75mm ) 1.1"
Products Name: SMC7538-12M ( 75mm ) 1.1"


75mm 1.1" 12 Megapixel Macro Lens Machine Vision FA Lens Low Distortion 0.05% Camera Factory Automation C Mount


  • High resolution :      12 megapixel cover all 4K & 1080P
  • Large format:          1.1" size covering 1", 2/3", 1/1.8" camera
  • Big aperture :          F3.8 big aperture makes imaging far better
  • Low distortion :        0.05% low distortion use machine vision
  • Woring distance:      257-471mm
  • Magnification :         0.18x-0.38x
  • Application :            Machine vision, FA, high quality.



    Model 型号

    SMC5038-12M

    Resolution 像素

    12 Megapixel

    Format (inch) 靶面

    1.1"

    Focal Length (mm) 焦距

    75mm

    Aperture (Close) 光圈

    F3.8 Manual Iris

    Angle of View (°

    视场角 HxV

    1.1"

    78*58 (0.18x)

    2/3"

    1/2"

    Working distance (mm) 工作距

    257-471mm

    Magnification 倍率

    0.18x-0.38x

    Distortion 畸变

    <0.05%

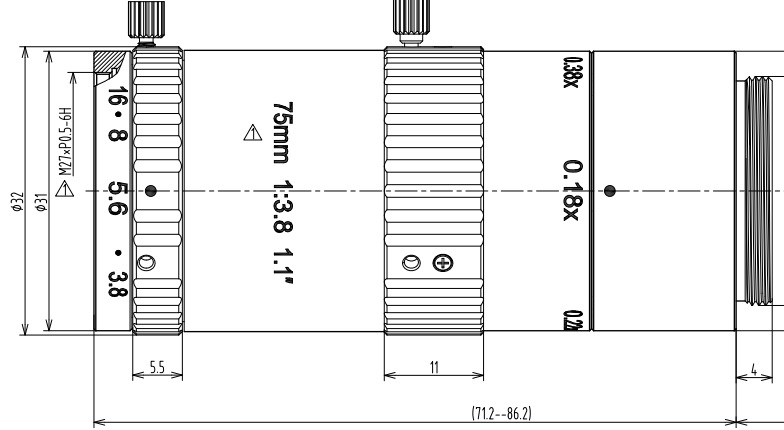

    Size 尺寸

    Φ32*75.2

    Mount 接口

    C

    Weight (g) 重量

    210g
