>> IR Megapixel lens 4K - S1ITS2515IR-8M ( 25mm ) 1"
Products Name: S1ITS2515IR-8M ( 25mm ) 1"
ITS Lens Features:

  • High resolution :      8.0 megapixel cover all 4K & 1080P
  • Large format:          1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion :        -2.471% low distortion use machine vision ITS
  • Application :            Machine vision, FA, ITS etc.

    Model

    S1ITS2515IR-8M

    Resolution

    8.0 Megapixel

    IR Correction

    IR

    Format

    1"

    Focal Length (mm)

    25mm

    Aperture (Close)

    F1.5 Manual iris

    Angle of View

    1"

    36*29*21

    2/3"

    25*20*15

    1/2"

    M.O.D (m)

    0.5m

    Distortion

    -2.47%

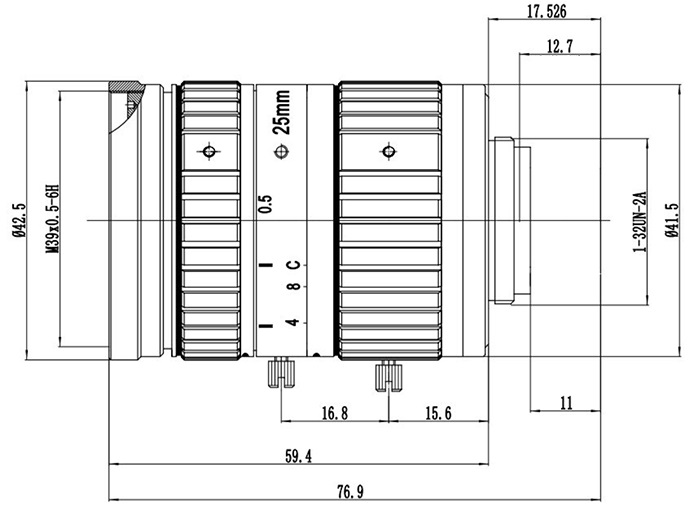

    Size

    Φ42.5*65.9

    Mount

    C

    Weight (g)

    310
