>> SWIR Lens (Short Wave) - S1WIR2514-5M ( 25mm ) 1"
Products Name: S1WIR2514-5M ( 25mm ) 1"

SWIR Short Wavelength IR Lens Covering 900~1700nm Which Can Use For Electronic Inspection, Semiconductor, Biometric Imaging, Military That Has Complex Foggy Enviroment

25mm 1" 5.0 Megapixel Machine Vision FA Lenses For SWIR Shortwave IR Camera 900~1700nm Coating Used For Inspection



Model 型号

S1WIR2514-5M

Resolution 像素

5 Megapixel

Format inch靶面

1"

Focal Length mm焦距

25mm

ApertureClose光圈

F1.4 Manual Iris

Angle of View (°) DxHxV

视场角 对角x水平x垂直

1"

28.6*21.5*15.4

2/3"

1/2"

M.O.D.(m最近物距

0.6~0.8m

B.F.L(mm) 光学后焦

11.46mm

M.F.L(mm) 机械后焦

8.97mm

T.T.L 光学总长

53.7mm

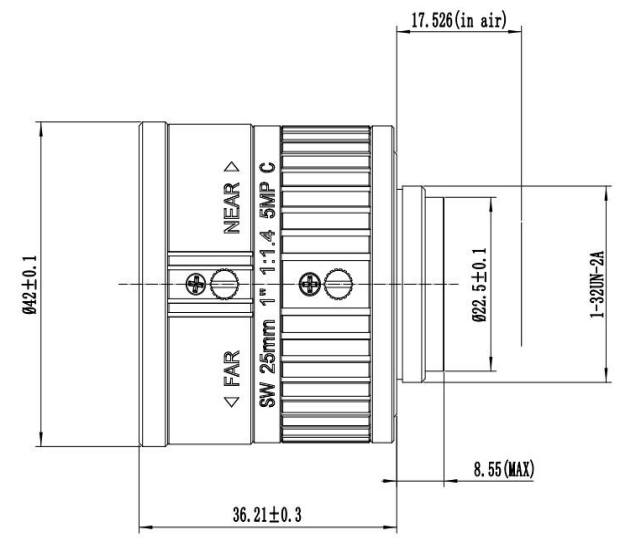

Dimension 尺寸

Φ42*36.21mm

Distortion 畸变

-1.39%

Wavelength 波长

900~1700nm

Mount 接口

C

Weight g重量

180g
