>> SWIR Lens (Short Wave) - S1WIR3514-5M ( 35mm ) 1"
Products Name: S1WIR3514-5M ( 35mm ) 1"

SWIR Short Wavelength IR Lens Covering 900~1700nm Which Can Use For Electronic Inspection, Semiconductor, Biometric Imaging, Military That Has Complex Foggy Enviroment

35mm 1" 5.0 Megapixel Machine Vision FA Lenses Low Distortion -0.54% For SWIR Shortwave IR Camera 900~1700nm Coating Used For Inspection


Model 型号

S1WIR3514-5M

Resolution 像素

5 Megapixel

Format inch靶面

1"

Focal Length mm焦距

35mm

ApertureClose光圈

F1.4   Manual Iris

Angle of View (°) DxHxV

视场角 对角x水平x垂直

1"

25.2*20.3*15.2

2/3"



1/2"



M.O.D.(m最近物距

0.5m

B.F.L(mm) 光学后焦

13.67mm

M.F.L(mm) 机械后焦

9.92mm

T.T.L 光学总长

53.7mm

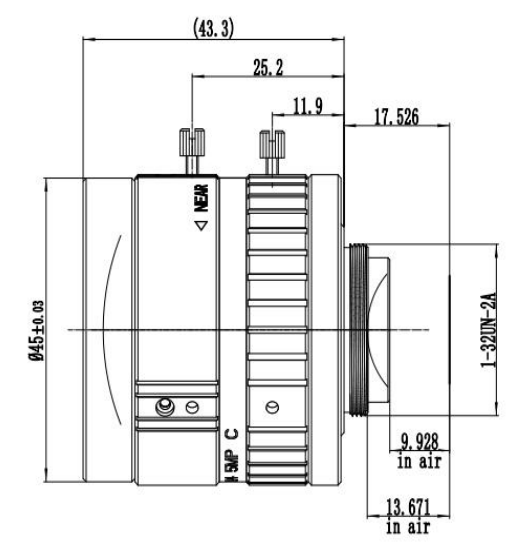

Dimension 尺寸

Φ45*43.3mm

Distortion 畸变

-0.54%

Wavelength 波长

900~1700nm

Mount 接口

C

Weight g重量

156g
