Current:Home > Products - 4K 12 Megapixel Zoom Lenses - S1MZ1040IR-12M ( 10-40mm ) 1"

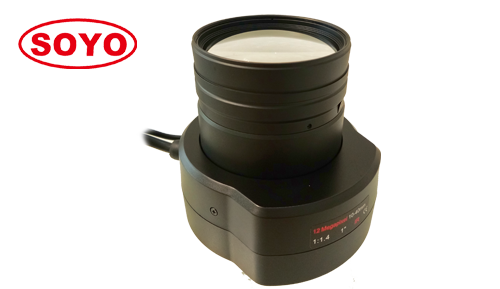

Product name:S1MZ1040IR-12M ( 10-40mm ) 1"
Product description:


10-40mm 1" 12MP Motorized Zoom Lenses Megapixel CCTV Camera Lens ITS Industrial IR Day & Night DC /3 Motors / P-iris Optional Surveillance Optical Parts

  • High resolution:        12 megapixel covering 4K, 1080P
  • Suitable F. length:    10-40mm making up short distance surveillance.
  • Big aperture:             F1.6 suitable for dark vision
  • Large format:            1" large format covering all 2/3",1/1.7",1/2"
  • Compact size :          Compact small size lens for special application.
  • Optional Iris :            P-iris & 3 motors, DC iris for option
  • Application:             Highway,train, industry, power station, city surveillance.







Model 型号

S1MZ1040-12M

Resolution 像素

12 Megapixel

IR Correction 红外矫正

IR ( With filter 不等厚滤光片)

Format (inch) 靶面

1"

Focal Length (mm) 焦距

10-40mm

Aperture (Close/360) 光圈

F1.6 P-iris ( DC / 3 Motors optional )

Angle of View (°)

视场角DxHxV

1"

68.5*54.6*41.5

2/3"

48.2*38*23.7

1/2"

35.7*27.9*24.9

M.O.D (m) 最近物距

2.5m

Distortion 畸变

-8% ~ -4.8%

C.R.A 主光线夹角

<5.8° (wide); <4.9° (Tele)

B.F.L 光学后焦

11.6mm

M.F.L 机械后焦

10.97mm

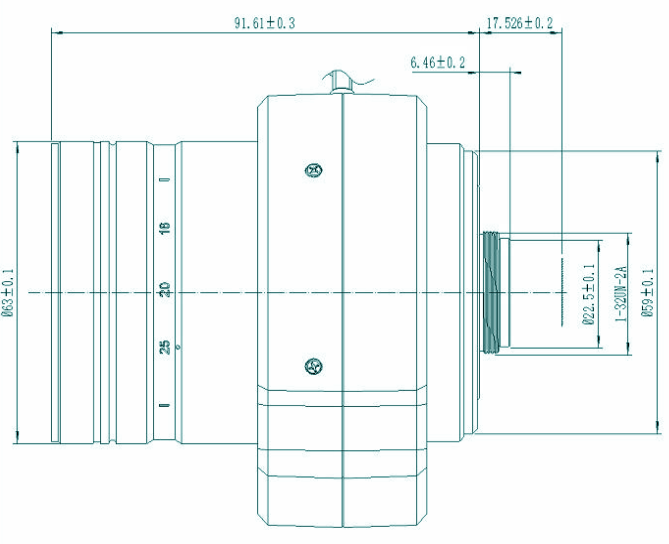

Dimension 尺寸mm

Φ66*98.07

Mount 接口

C

Weight (g) 重量

560g

Marks 备注

-20°~+6

Character 特性

P-iris, DC iris, 3 Motors Optional
