CURRENT:HOME > PRODUCTS - M16 Black-light Lens - S18BF0495IR-5M ( 4mm ) 1/1.8"

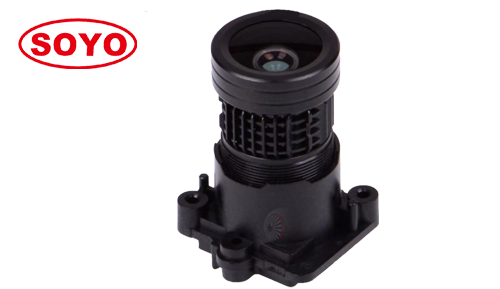

Product name:S18BF0495IR-5M ( 4mm ) 1/1.8"
Product description:

CCTV Lens Features:

  • High resolution:      5.0 megapixel can cover 3MP,1080P, 720P
  • Big aperture:           F0.95 black light support evening dark vision
  • Large format:          1/1.8" can cover all 1/1.8", 1/2", 1/2.5"
  • Wide FOV :             Super wide FOV support short distance view.
  • IR correction :         24h day & night vision
  • Aspherical lens:      Inside Aspherical element helps imaging far better.
  • Application:           Smart home, security surveilance, office, room, bank etc.

Model

S18BF0495IR-5M

Resolution

5.0 Megapixel

IR Correction

IR

Format  (inch)

1/1.8"

Focal Length  (mm)

4.0 mm

B.F.L (mm )

5.93mm

Aperture  (Close)

F0.95 Fixed iris

Angle of View (°)

1/1.8"

108*92*49

1/2"

1/2.5"

M.O.D  (m)

0.2m

Distortion

-12.9%

Spectral transmission

>85%@550nm,>83%@650nm,>70%@850nm

Relative illumination

45% @ ∅8.8

Size

Φ18*26.6

T.T.L(mm)

31.93mm

Mount

M16*P0.5

Weight  (g)

16g

Marks

3G3P
