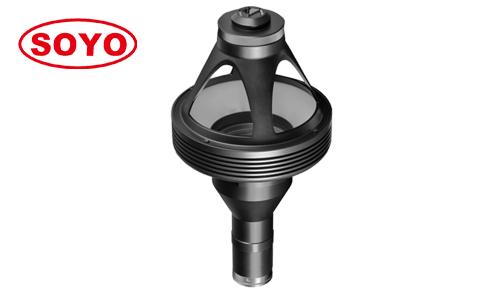

Product name:Catadioptric 360 Degree Outwall Inspection Lens
Product description:

Catadioptric 360° Degree Multi-angle Outwall Surface Imaging Megapixel Lenses Low Distortion FA Machine Vision Industrial Automation Camera Lens China Optics Round View ( 360度外壁检测远心镜头 )

* Optics module consisted by Bi-telecentric lens,LED ring lighting,6 prism.

* The top and side views show exactly the same magnification.

* Support kinds of sensor from 1/3" to 59mm.

* Used for pharmacy, bottle, cap, tube, container  用于烟草、饮料瓶装、管类、罐类检测


Download 下载: SODM23V1-3195 ( Telecentric 360 Degree )     ( Leadtime 5-7 Working Days )

Download : SODMV1 ( Telecentric 360 Degree )




Model 型号

SODM23V1-3195

Wave length 波长

400-680nm

MTF30 (lp/mm)

>190lp/mm

Format 靶面

2/3”

Working distance 工作距

19-23mm

Aperture 光圈

F4.6

Illuminator voltage 电压

DC 24V

Power 功率

18w

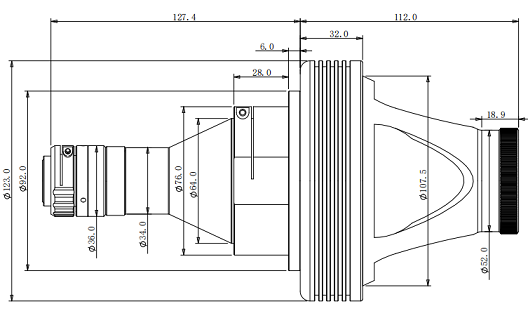

Size 尺寸

Φ123*239.4

Mount 接口

C

Weight  重量

520

Screw thread 螺纹

Max object inspection height (mm)

M1.0

1.5mm

M1.2

1.75mm

M1.7

1.8mm

M2.0

2.4mm

M2.5

2.7mm

MΦ3

4mm

MΦ4

4.9mm

MΦ5

5mm

MΦ6

6mm

MΦ8

5mm

MΦ10

4.5mm

360 degree multi-angle imaging lenses; Inspect 1-10mm object;




Marks: Tabacco airhole inspection  ( Picture 1 )




More Wonderful Test Pictures, Please Browse Google Drive : ( BROWSE )

https://drive.google.com/file/d/1qUX_sl6tdSZYYoiUDvFFRvSB7-VtW2Wx/view?usp=drive_link
