Current:Home > Products - 360° Degree Outwall Innerwall - SRV82 Inner Hole 5-120mm Inspection Lens

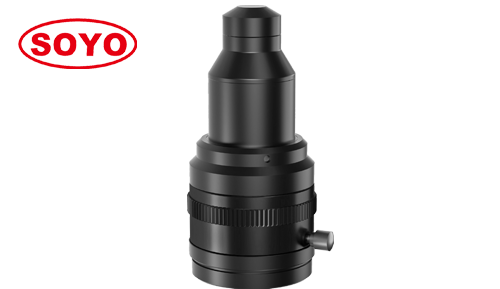

Product name:SRV82 Inner Hole 5-120mm Inspection Lens
Product description:

SRV82CL Innerwall 360
° Degree Inner Side Barrel Surface Wall Inspection Megapixel FA Lenses 2/3" Round View Imaging Camera Optics High Resolution Lens On Pharmacy Cosmetic Alcohol Inspection( 360度内壁检测镜头)

PDF Download : SRV82

* 360°inner barrel inspection 360度内壁管检测

* High resolution & compact size 高像素紧凑尺寸

* Inspect small size object at wide sight 大视野范围内检测小尺寸物体

* Application for tube, auto, container, bottle cap inside inspection 管类,发动机,瓶罐内壁


Model 型号

SRV82

Format 靶面

2/3"

Resolution 像素

Megapixel

Image circle 场高

Φ6.6

Wavelength 波长

450~650

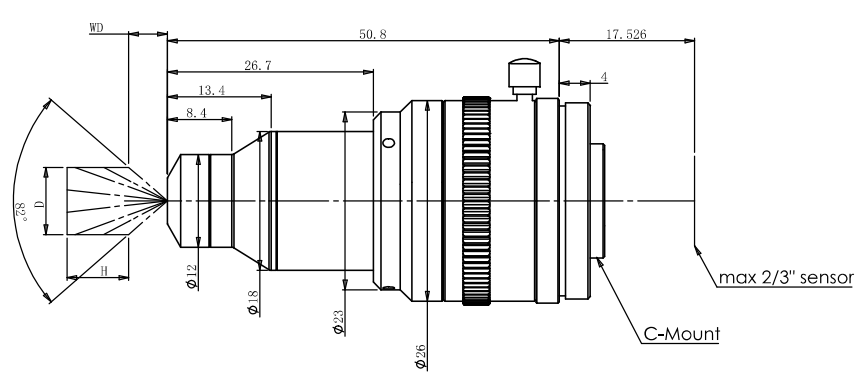

Dimension 外径

Φ26*54.8mm

Mount 接口

C

Diameter (mm) 直径

Height (mm) 高度

Working Distance (mm) 工作距

5mm

4

5

10mm

6

7

20mm

20

13

30mm

30

17

40mm

40

24

50mm

50

27

60mm

60

33

80mm

80

44

100mm

100

55

120mm

120

65
