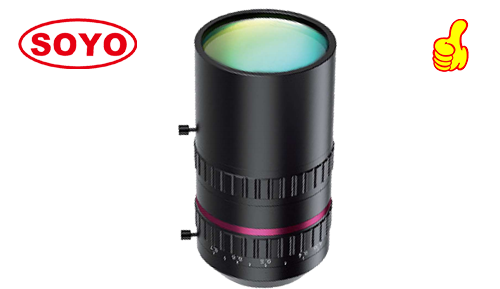

Variable Telecentric Lenses Image Size 1.1" φ18.2mm 0.35X~0.7X Magnification Working Distance 78mm TV Distortion <0.1% Telecentricity 1.35~0.17° DOF ( Depth of Field ) 3.3~1.1mm Camera Lens Positioning Measurement Defect Inspection 远心变焦0.35X~0.7X 镜头大景深定位、瑕疵检测、测量等

Download PDF :   S11VTC03507X

* Format :                    1.1"  ( φ18.2mm )
* Working Distance:       78mm
* Magnification:             0.35x~0.7x
* Distortion:                  <0.1%
* Telecentricity:              1.35~0.17°
* Depth of Field:            3.3~1.1mm (DOF)
* Application:                 Measurement, Positioning, Inspection
