Product name：SVD6520IR-3M ( 6.5-20mm ) 2/3"

Product description：

2/3" 6.5-20mm 3.0 Megapixel Lenses Security Surveillance Camera Smart City ITS Parking Face Recognition Varifocal C/CS Mount CCTV Lens China Optics

High resolution : 3.0 megapixel cover all 4K & 1080P 像素300万
Large format: 2/3" size covering 2/3", 1/1.8", 1/2" camera 大靶面2/3
Big aperture : F1.4 big aperture makes imaging far better 大光圈夜晚适合
Application : Surveillance etc. 各种监控适用

Model 型号		SVD6520IR-3M
Resolution 像素		3 Megapixel
IR Corrected 日夜		IR
Format 靶面		2/3"
Focal Length 焦距		6.5-20mm
Aperture (Close) 光圈		F1.4 DC Iris
Angle of View (°) 视场角	2/3"	W: 967454 \| T: 322720
M.O.D 最近物距		0.3m
B.F.L 光学后焦		12-21.39mm

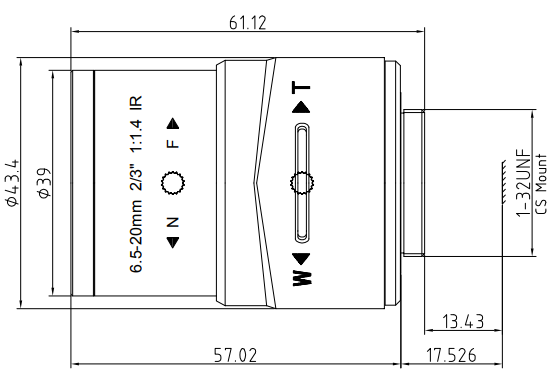

Size 尺寸		Φ43.4*57.02
T.T.L 光学总长		75.9mm
Mount 接口		C
Weigh 重量		130g
Marks 备注		-20~+100°
