CURRENT:HOME > PRODUCTS - 5.0 Megapixel CCTV Lenses - SVD2812IR-5M (2.8-12mm) 1/2.7"

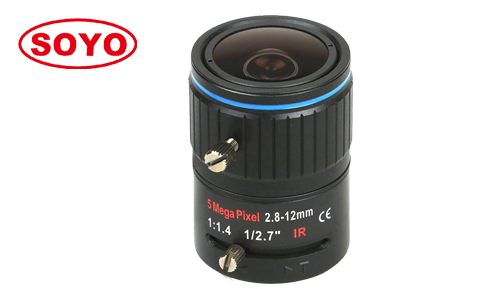

Product name:SVD2812IR-5M (2.8-12mm) 1/2.7"
Product description:

CCTV Lens Features:

  • High resolution :     5.0 megapixel high resolution cover all 5MP, 3MP,1080P
  • IR correction :         24h day & night vision
  • Small design :        small size can fit all box size
  • Application :           All bldg., school, room, bank etc. inside area.




Model

SVD2812IR-5M

Resolution

5.0 Megapixel

IR Corrected

 IR

Format (inch)

  1/2.7"

Focal Length (mm)

  2.8-12mm

Aperture (Close)

  F1.6   DC Iris

Angle of View (°)

2/3"

1/2.7"

148x113.8x79.8

1/2"

M.O.D (m)

0.3m

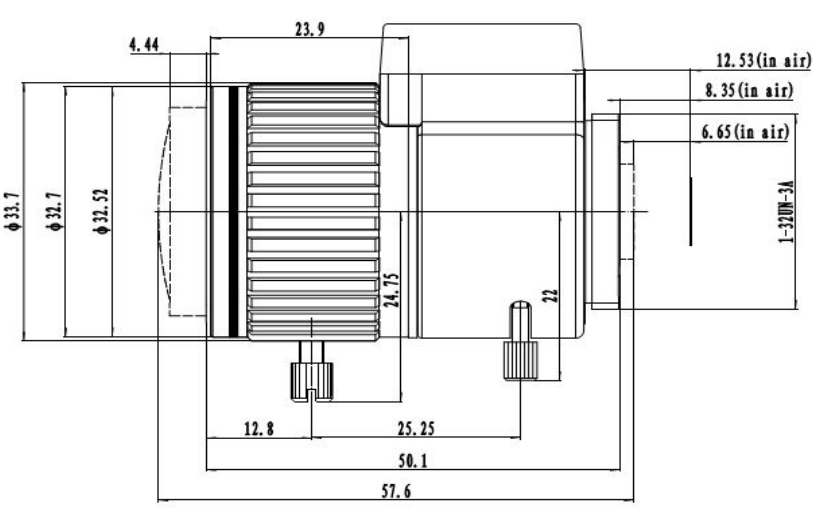

Size

Φ33.7x57.6mm

Distortion

                          -69% ~ -3.3%

Mount

CS

Weight (g)

55
