Current:Home > Products - 12 Megapixel CCTV Lenses - S1VD1040IR-12M ( 10-40mm ) 1"

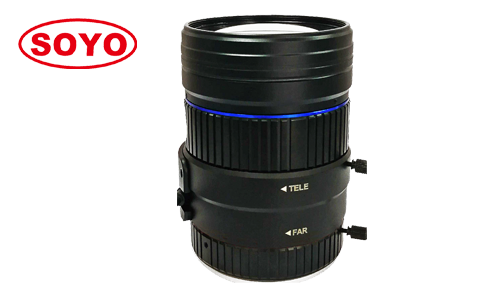

Product name:S1VD1040IR-12M ( 10-40mm ) 1"
Product description:


1" 10-40mm 12Megapixel Lenses Varifocal CCTV Lens Security Surveillance Camera Optics Safe City ITS Industrial IR Day Night C Mount Made in China


  • High resolution:      12 megapixel can cover 4K 高像素
  • Wide focal length:  10-40mm can instead 12-36mm lens 焦距宽
  • Big aperture:           F1.6 suitable for dark vision 大光圈
  • Large format: 1" can cover all 1",1/1.7",1/1.8",1/2" 超大靶面
  • Low distortion:         Fit for ITS need low distortion 低畸变
  • Filter size :              M60*0.75 滤镜螺纹
  • Variety iris:              DC iris, P-iris, Manual iris optional 自动/手动/P光圈可选
  • Application:           Smart city, exit, metrol, ITS, highway, forest, river, mountain etc.

Model 型号

S1VD1040IR-12M

Resolution 像素

12 Megapixel

IR Correction 红外

IR

Format 靶面

1"

Focal Length 焦距

10-40mm

Aperture (Close) 光圈

F1.6 DC iris / P-iris (optional)

Angle of View 视场角

1"

68.5*54.6*41.5

2/3"

48.2*38*23.7

1/2"

35.7*27.9*24.9

M.O.D 最近物距

2.5m

Distortion 畸变

-8% ~ -4.8%

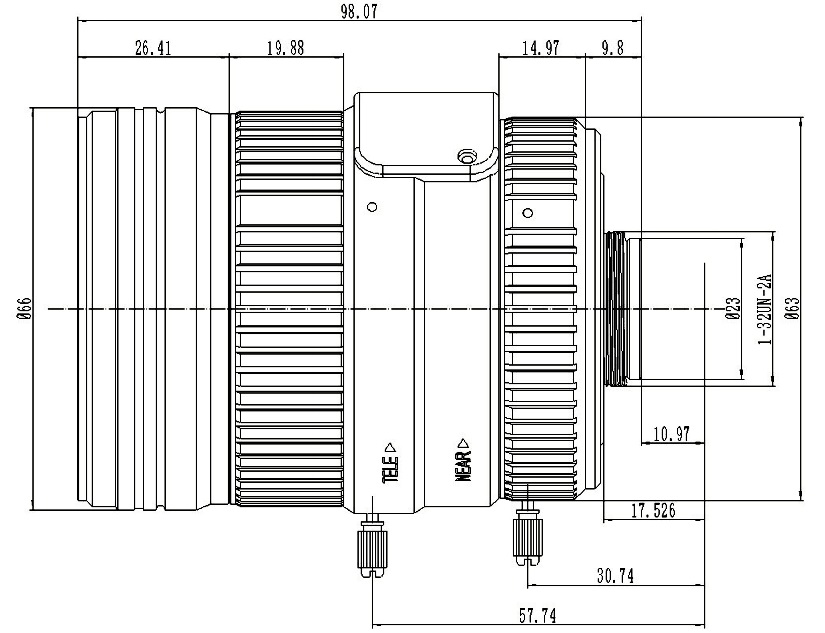

Size 尺寸

Φ66*98.07mm

Mount 接口

C

Weight 重量

560g
