Product name:S23VM6515IR-3M (6.5-15.5mm) 2/3"
Product description:


2/3" 6.5-15.5mm 3.0 Megapixel Manual Iris Security Surveillance CCTV Camera Lenses Recognition Industrial IR C/CS Lens

  • High resolution:      3 megapixel can cover 4K,1080P
  • Wide focal length:   6.5-15.5mm
  • Large format:          2/3" can cover all 1/1.7",1/1.8",1/2",1/2.5"
  • Iris type :                 Manual iris


Model 型号 모델

S23VM6515IR-3M

Resolution 像素 해결

3.0 Megapixel

IR Corrected 日夜

IR

Format inch靶面 센서 크기

2/3"

Focal Length mm焦距 초점 거리

6.5-15.5mm

ApertureClose光圈 구멍

F1.7 Manual Iris

Angle of View (°) DxHxV

视场角 对角x水平x垂直

1"

2/3"

100*77*58

1/2"

M.O.Dm最近物距 최소 작동 거리

0.3m

Distortion 畸变 왜곡

-16% ~ -0.6%

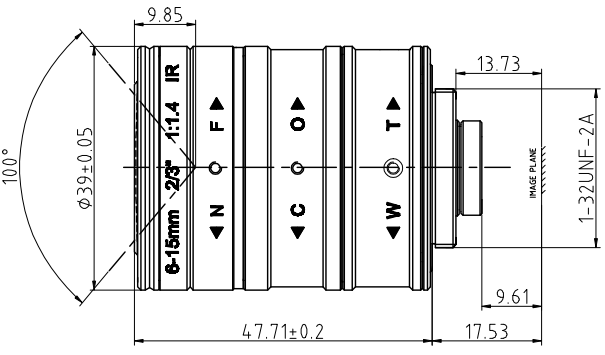

Size 尺寸 크기

Φ39*47.1

T.T.L 光学总长 광학 길이

65mm

Mount 接口 상호 작용

C

Weightg重量 무게

200g
