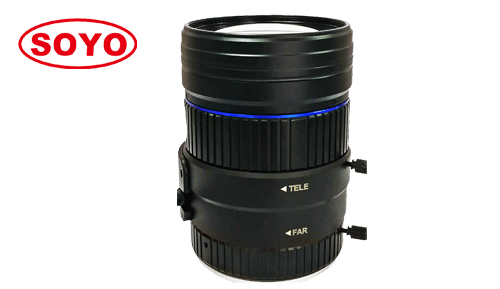

Product name:S1VM1040IR-12M ( 10-40mm ) 1"
Product description:


1" 10-40mm 12.0 Megapixel Security Surveillance CCTV Camera Lenses ITS LPR Face Recognition Industrial IR C/CS Lens

  • High resolution:      12 megapixel can cover 4K,1080P 超高像素1200万
  • Wide focal length:  10-40mm can instead 12-36mm lens 宽焦距
  • Big aperture:           F1.6 suitable for dark vision 大光圈夜用
  • Large format:          1" can cover all 1",1/1.7",1/1.8",1/2" 超大靶面1英寸
  • Low distortion:         Fit for ITS need low distortion image 交通适用
  • Filter size :              M60*0.75 螺纹尺寸
  • Application:           Smart city, traffic, exit, metrol, ITS, highway. 交通等




Model 型号 모델

S1VM1140IR-12M

Resolution 像素 해상력

12 Megapixel

IR Correction 红外 적외선

IR

Format 靶面 표적 표면

1"

Focal Length (mm) 焦距 초점 거리

11-40mm

Aperture (Close) 光圈 구멍

F1.6  Manual iris

Angle of View 视场角DHV

1"

67.2*54.6*41.5

2/3"

47.3*38*23.7

1/2"

34.7*27.9*24.9

M.O.D (m) 最近物距 가장 가까운 물체 거리

2.5m

Distortion 畸变 왜곡

-8% ~ -4.8%

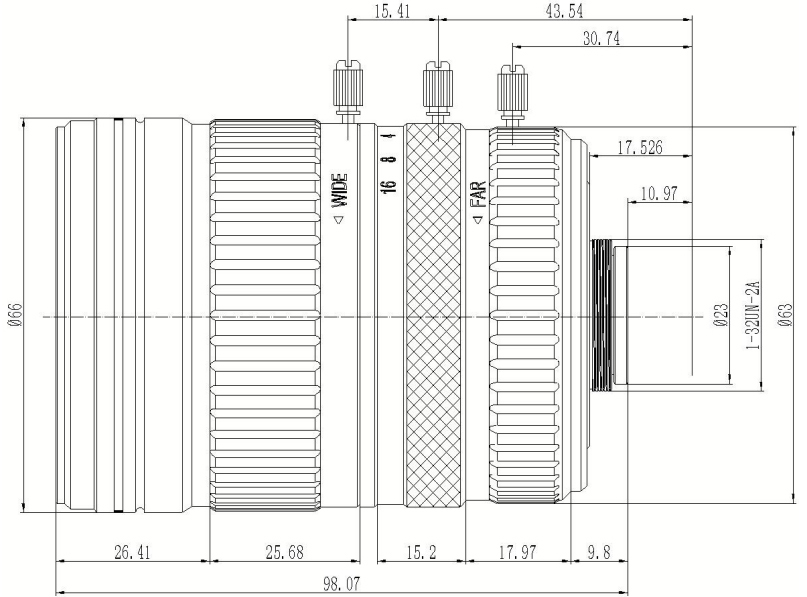

Size 尺寸 크기

Φ66*98.1

Mount 接口 무게

C

Weight (g) 重量 무게

560g
